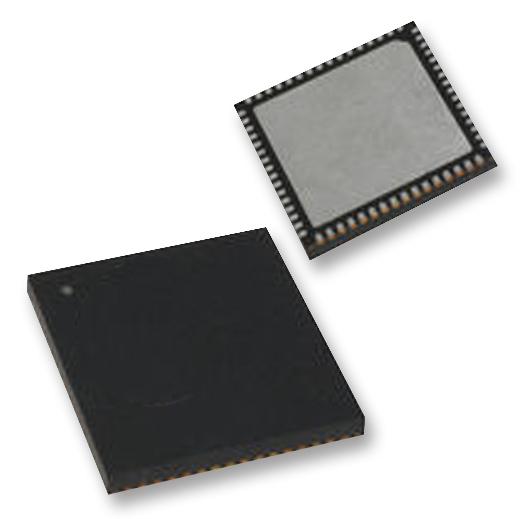

MICROCHIP - ATMEGA128A-MU - 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega128 Series Microcontrollers, 16 MHz
- Product Range: AVR ATmega Family ATmega128 Series Microcontrollers
- CPU Speed: 16MHz
- Program Memory Size: 128KB
- RAM Memory Size: 4KB
- No. of Pins: 64Pins
- MCU Case Style: QFN
- No. of I/O's: 53I/O's
- Embedded Interface Type: I2C, SPI, UART
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- MCU Family: AVR ATmega
- MCU Series: ATmega128
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Base Number: megaAVR
- Controller Family/Series: ATmega
- EEPROM Memory Size: 4KB
- Flash Memory Size: 128KB
- Logic Function Number: 128
- MPU Core Size: 8bit
- No. of ADC Inputs: 8
- No. of PWM Channels: 8
- No. of Timers: 4
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, PWM, RTC, Timer
- Program Memory Size: 128KB
- Supply Voltage Range: 2.7V to 5.5V
- Termination Type: Surface Mount Device
