AC5M Plug, xlr, Nickel, 5POLE Amphenol Sine/TUCHEL

AMPHENOL SINE/TUCHELUGS :AC5M Code de commande:1349043

Prix:
Prix ​​promotionnel€12,80

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (19 unité)

Documents et téléchargements

description

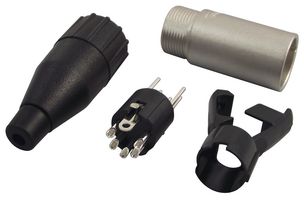

AMPHENOL SINE/TUCHEL - AC5M - XLR Connector, 5 Contacts, Plug, Cable Mount, Silver Plated Contacts, Metal Body, AC

  • No. of Contacts: 5Contacts
  • Gender: Plug
  • Connector Mounting: Cable Mount
  • Contact Plating: Silver Plated Contacts
  • Connector Body Material: Metal Body
  • Product Range: AC Series
  • Colour: Nickel
  • Connector Colour: Natural
  • Contact Resistance: 3mohm
  • Contact Termination: Solder
  • Current Rating: 7.5A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Mechanical Life: 1000 mating cycles
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -25°C
  • Termination Method: Solder
  • Voltage Rating VAC: 50V
  • Wire Size AWG Max: 18AWG
