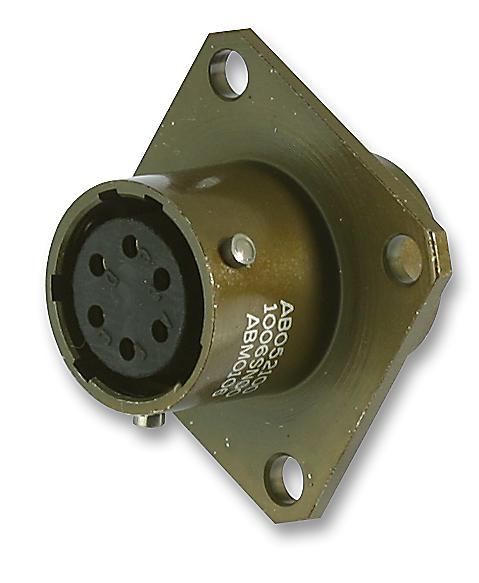

TT ELECTRONICS / AB CONNECTORS - AB05 2100 14 19 SN00 - Circular Connector, AB05, Wall Mount Receptacle, 19 Contacts, Solder Socket, Bayonet, 14-19
- Product Range: AB05 Series
- Circular Connector Shell Style: Wall Mount Receptacle
- No. of Contacts: 19Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: Bayonet
- Insert Arrangement: 14-19
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Chromate over Cadmium
- Contact Material: Brass
- Contact Plating: Gold
- Insert Rotation: N
- Service Class: Corrosion Resistant
- Equivalent Military Specification: MIL-DTL-26482 Series I
- Colour: Olive
- Contact Resistance: 5mohm
- Current Rating: 5A
- External Length / Height: 26.4mm
- External Width: 29mm
- IP / NEMA Rating: IP67
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Panel Cutout Diameter: 25.12mm
- Panel Cutout Size: 23.01 mm
- Voltage Rating VAC: 700V
- Working Voltage: 700V
