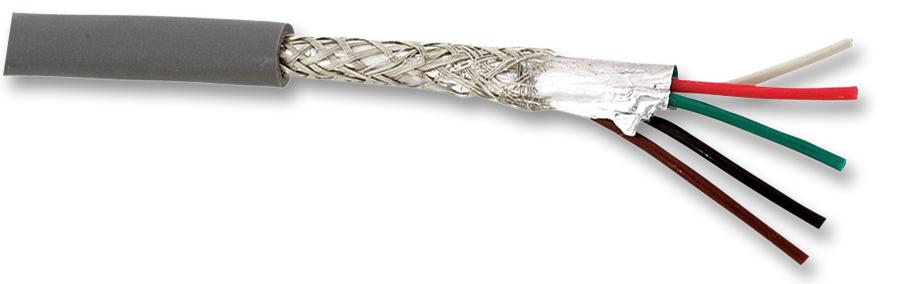

BELDEN - 9949 060100 - Multicore Cable, Computer, Screened, 37 Core, 22 AWG, 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Cores: 37Core
- Wire Gauge: 22AWG
- Conductor Area CSA: -
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.255mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 11.68mm
- Voltage Rating: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Foil + Braided Shield
- Conductor Make-up: 7 / 30AWG
- Current Rating: 1.4A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Outer Diameter: 11.68mm
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: PVC
- Wire Size: 22AWG
