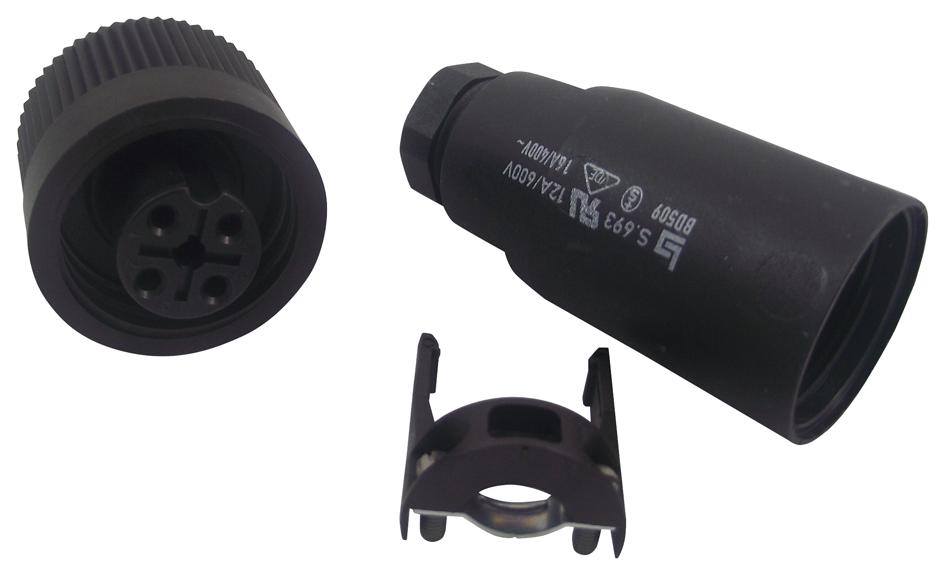

BINDER - 99-4226-14-07 - Circular Connector, 693 Series, Cable Mount Receptacle, 7 Contacts, Solder Socket
- Product Range: 693 Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 7Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: -
- Connector Body Material: -
- Connector Body Plating: -
- Contact Material: Brass, Bronze
- Contact Plating: Silver
- SVHC: Lead (27-Jun-2018)
- Cable Diameter Max: 12mm
- Cable Diameter Min: 10mm
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Silver Plated Contacts
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 10A
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP67
- No. of Mating Cycles: 500
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Termination Type: Solder
- Voltage Rating VAC: 250V
- Wire Area Size Max: 0.75mm²
- Withstand Voltage: 4000V
