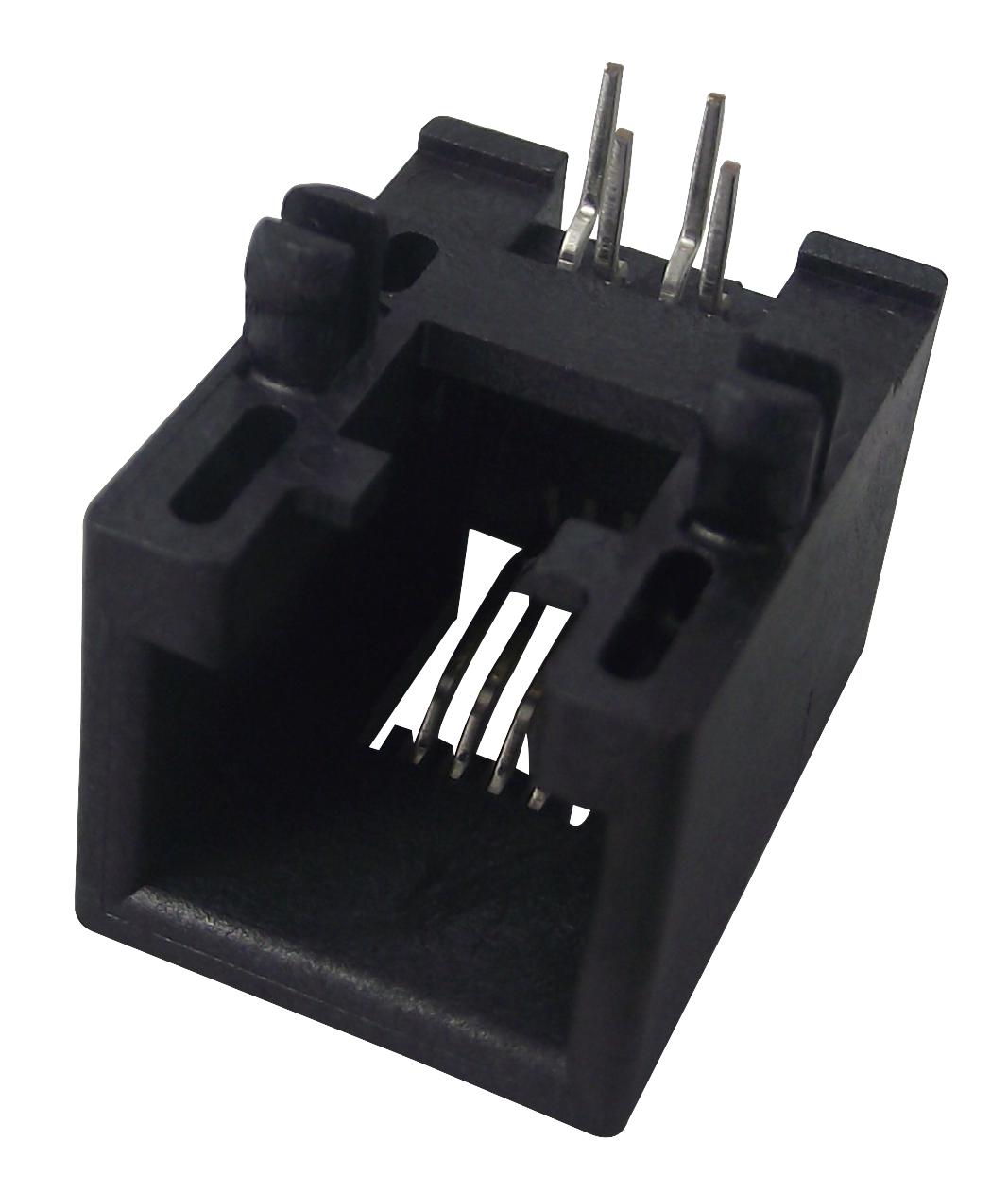

MOLEX - 95501-2641 - Modular Connector, Modular Jack, 1 x 1 (Port), 6P4C, Cat3, Through Hole Mount
- Modular Connector Type: Modular Jack
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 6P4C
- LAN Category: Cat3
- IP Rating: -
- Connector Mounting: Through Hole Mount
- Connector Orientation: Right Angle
- Shielding: Unshielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: 95501 Series
- SVHC: No SVHC (15-Jan-2019)
- Case Material: Polyester, Glass-filled
- Colour: Black
- Connector Type: RJ11
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 1.5A
- External Depth: 18.1mm
- External Length / Height: 11.5mm
- Flammability Rating: UL94V-0
- Gender: Jack
- Height: 11.5mm
- Material: Polyester, Glass-filled
- No. of Contacts: 4Contacts
- No. of Mating Cycles: 500
- No. of Ports: 1Ports
- No. of Positions: 6Ways
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 125V
