description

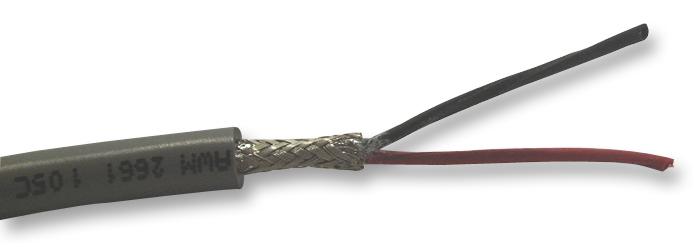

ALPHA WIRE - 86701CY SL005 - Multipair Cable, Xtra Guard® Flex, Screened, 1 Pair, 22 AWG, 0.38 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Pairs: 1 Pair
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.38mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 19 x 22AWG
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 5.4mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Bend Flexing Radius Min: 15 X Cable Diameter
- Cable Type: Foil + Braided Shield
- Complex Cable Make-Up: 2 x 19/0.16
- Conductor Make-up: 19 / 0.16mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: 5°C
- Outer Diameter: 5.59mm
- Primary Insulation Thickness: 0.25mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 1mm
- Voltage Rating VAC: 300V
- Wire Size: 22AWG
