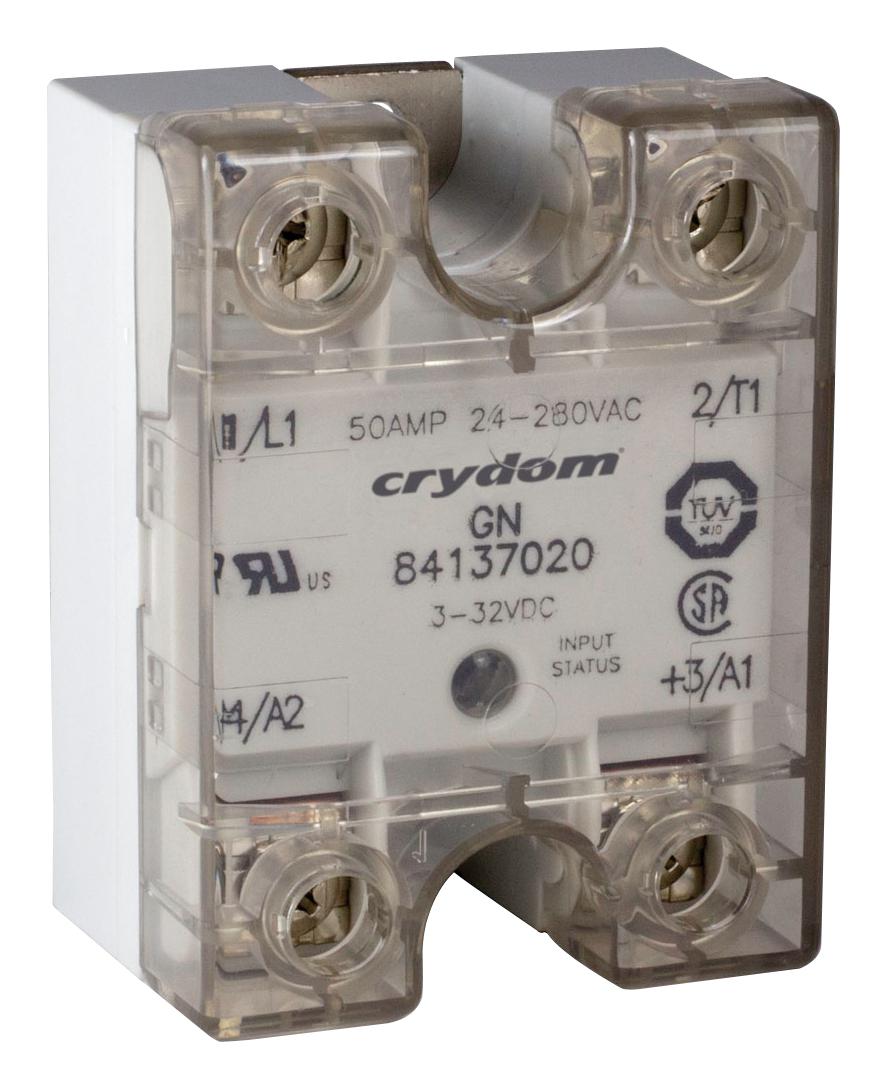

SENSATA/CRYDOM - 84137020 - Solid State Relay, 50 A, 280 VAC, Panel Mount, Screw, Zero Crossing
- Contact Configuration: -
- Load Current: 50A
- Operating Voltage Max: 280VAC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 32VDC
- Product Range: GN Series
- SVHC: No SVHC (12-Jan-2017)
- Control Current Max: 14mA
- Control Current Min: 7mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 32V DC
- Control Voltage Type: DC
- Dropout Voltage Vdo: 1VDC
- Input Voltage Max: 32VDC
- Input Voltage Min: 4VDC
- Isolation Voltage: 4kV
- Load Current Min: 100mA
- Load Current RMS Max: 50A
- Operating Frequency Max: 63Hz
- Operating Frequency Min: 47Hz
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Operating Voltage Range: 24V AC to 280V AC
- Output Type: Thyristor
- Output Voltage Max: 280VAC
- Output Voltage Min: 24VAC
- RMS Load Current Min: 100mA
- RMS Load Voltage Max: 280VAC
- RMS Load Voltage Min: 24VAC
- Single Cycle Surge Current: 780A
