description

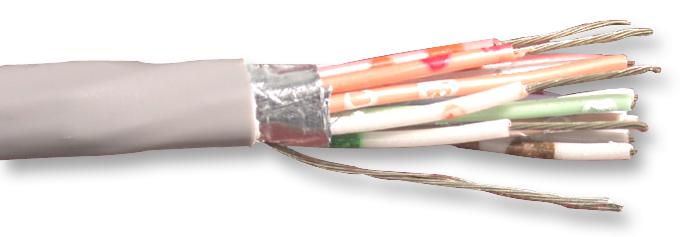

- Cable Shielding: Screened
- No. of Pairs: 7 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.226mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 8.66mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Foil + Braided Shield
- Conductor Make-up: 7 / 32
- Core - Core Capacitance: 41pF/m
- Current Rating: 1.5A
- Flammability Rating: UL1685
- Impedance: 100ohm
- No. of Cores: 14Core
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Outer Diameter: 8.66mm
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: FPE
- Velocity of Propagation (%): 78%
- Wire Size: 24AWG
