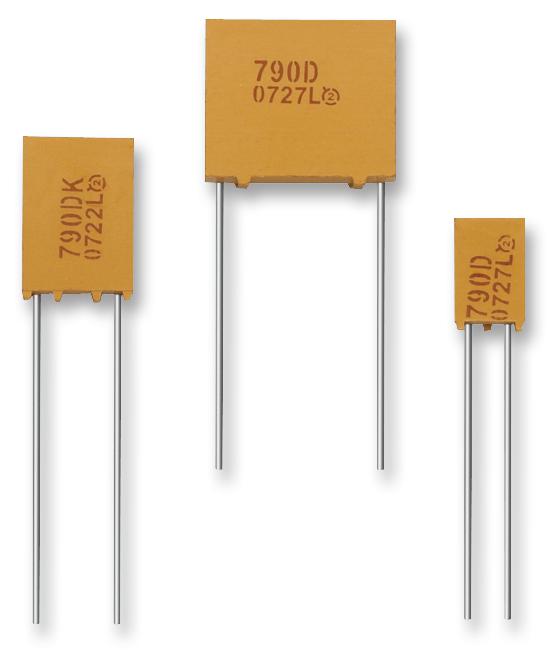

VISHAY - 790D106X9025B2BE3 - Tantalum Capacitor, Resin Molded, 10 µF, 25 V, ± 10%, Radial Leaded, 5.08 mm
- Capacitance: 10µF
- Voltage Rating: 25V
- Product Range: 790D Series
- Capacitance Tolerance: ± 10%
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 5.08mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- ESR: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 10%
- Capacitor Mounting: Through Hole
- External Depth: 4.8mm
- External Length / Height: 10.5mm
- External Width: 7.3mm
- Height: 10.5mm
- Impedance: 1.6ohm
- Impedance Frequency: 100kHz
- Impedance Temperature: 25°C
- Lead Diameter: 0.5mm
- Lead Length: 12mm
- Leakage Current: 2.5µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
