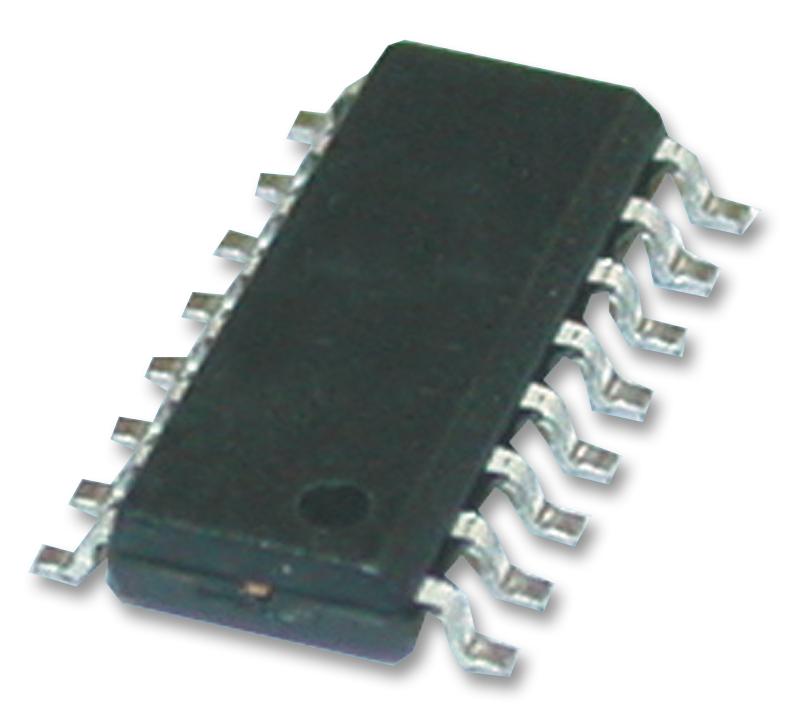

NEXPERIA - 74HC4538D,653 - Monostable Multivibrator, 74HC4538, 24 ns, 5.2 mA, 2 V to 6 V, SOIC-16
- Logic Family / Base Number: 74HC4538
- Multivibrator Type: Retriggerable Monostable
- Output Current: 5.2mA
- Supply Voltage Min: 2V
- Supply Voltage Max: 6V
- Logic Case Style: SOIC
- No. of Pins: 16Pins
- Propagation Delay: 24ns
- Logic IC Family: 74HC
- Logic IC Base Number: 744538
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 74
- Fall Time tf: 6ns
- Logic Function Number: 744538
- Logic IC Base Number: 744538
- Logic IC Function: Dual Retriggerable Monostable Multivibrator
- No. of Gates: 2
- Operating Temperature Range: -40°C to +125°C
- Rise Time: 6ns
- Supply Voltage: 5V
- Supply Voltage Range: 2V to 6V
- Termination Type: Surface Mount Device
