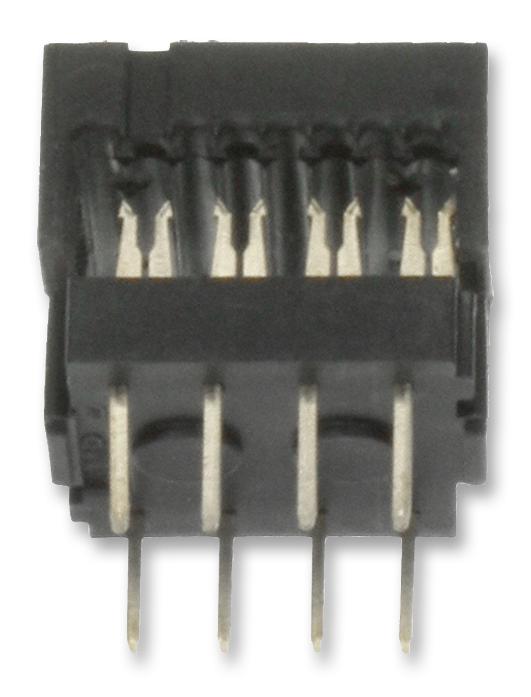

AMP - TE CONNECTIVITY - 746611-7 - Pin Header, Dual in Line, Wire-to-Board, 2.54 mm, 2 Rows, 8 Contacts, Through Hole, AMP-LATCH
- Pitch Spacing: 2.54mm
- No. of Contacts: 8Contacts
- Gender: Header
- Product Range: AMP-LATCH Series
- Contact Termination Type: Solder
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Beryllium Copper
- SVHC: No SVHC (15-Jan-2018)
- Contact Current Rating: 1A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1Gohm
- Material: Glass reinforced thermo plastic
- No. of Mating Cycles: 20
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 0.9mm
- Row Pitch: 2.54mm
- Withstand Voltage: 500V
