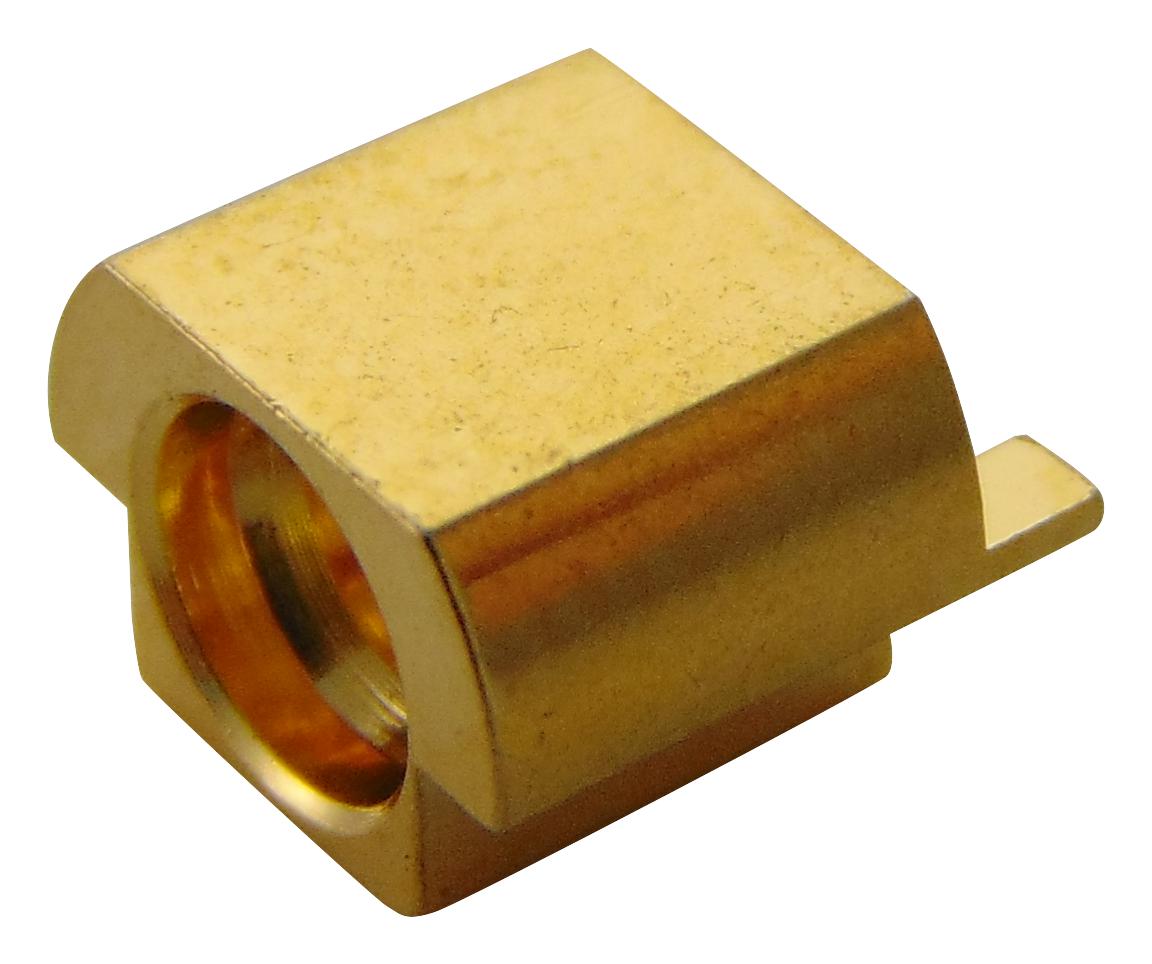

MOLEX - 73415-3593 - RF / Coaxial Connector, SMP Coaxial, Straight Plug, Board Edge / End Launch, 50 ohm, Brass
- Connector Type: SMP Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Board Edge / End Launch
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 40GHz
- Connector Mounting: PCB Mount
- Product Range: 73415 Series
- SVHC: No SVHC (15-Jan-2019)
- Body Plating: Gold
- Coaxial Type: RG316
- Connector Mounting Orientation: PCB
- DC Current Max: 1.2A
- Length: 6.35mm
- Material: Brass
- No. of Mating Cycles: 500
- Operating Frequency Max: 40GHz
- Operating Temperature Max: +155°C
- Operating Temperature Min: -65°C
- Termination Method: Solder
- Voltage Rating VAC: 335V
