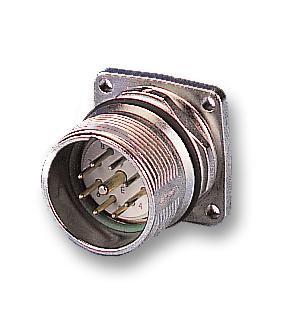

EPIC - 72000010 - Circular Connector, Circon R2.5 Series, Panel Mount Receptacle, Crimp Socket
- Product Range: Circon R2.5 Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: -
- Circular Contact Type: Crimp Socket
- Coupling Style: -
- Connector Body Material: -
- Connector Body Plating: -
- Contact Material: Copper Alloy
- Contact Plating: Gold
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 30mm
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Termination: Crimp / Solder
- Contact Termination Type: Crimp / Solder
- Current Rating: 9A
- External Depth: 24.6mm
- External Length / Height: 25.7mm
- External Width: 25.7mm
- Flammability Rating: UL94V-0
- Gasket Material: Viton/H-NBR
- Gender: Receptacle
- IP / NEMA Rating: IP67
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 20mm
- Voltage Rating VAC: 250V
- Working Voltage: 160V
