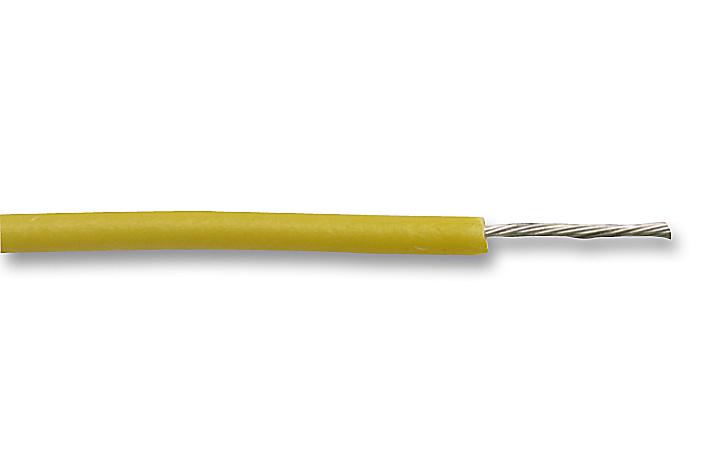

ALPHA WIRE - 7131 YL001 - Wire, Stranded, Hook Up, UL1430, PVC, Yellow, 22 AWG, 0.357 mm², 1000 ft, 304.8 m
- Jacket Material: PVC
- Jacket Colour: Yellow
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.357mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- No. of Max Strands x Strand Size: 7 x 0.255mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- External Diameter: 1.58mm
- Approval Specification: MIL-DTL-16878/2 (Type C), CSA REW XLPVC FT1, UL 1430
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 7 / 30AWG
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Outer Diameter: 1.58mm
- Primary Insulation Thickness: 0.41mm
- Voltage Rating VAC: 300V
- Wire Size: 22AWG
