6713 RD005 Wire, Eco, 22AWG, Red, 30.5m Alpha Wire

ALPHA WIREUGS :6713 RD005 Code de commande:1764934

Prix:
Prix ​​promotionnel€36,75

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (58 unité)

Documents et téléchargements

description

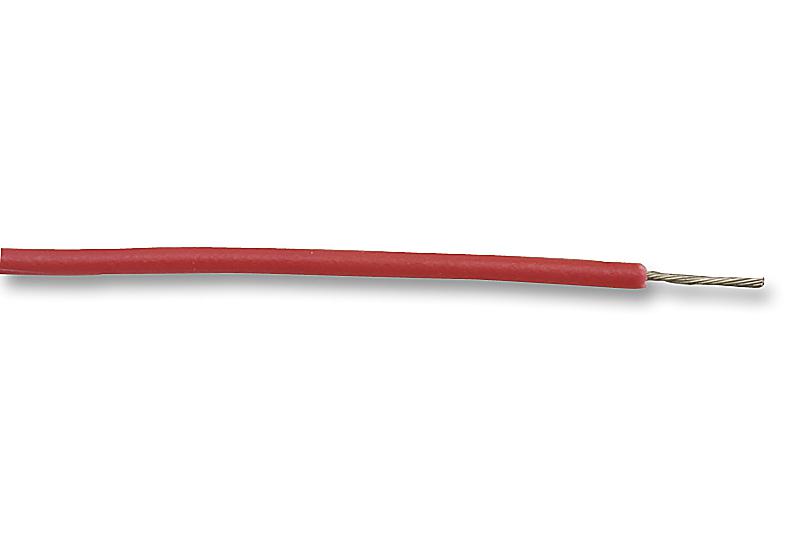

ALPHA WIRE - 6713 RD005 - Wire, Stranded, Hook Up, EcoWire®, UL11028, MPPE, Red, 22 AWG, 0.32 mm², 100 ft, 30.5 m

  • Jacket Material: MPPE
  • Jacket Colour: Red
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.32mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • No. of Max Strands x Strand Size: 7 x 30AWG
  • Voltage Rating: 600V
  • Conductor Material: Tinned Copper
  • External Diameter: 1.24mm
  • Approval Specification: CE, CSA AWM I A/B FT1, UL 11028 VW-1
  • Product Range: EcoWire Series
  • SVHC: No SVHC (15-Jan-2019)
  • Conductor Make-up: 7 / 30AWG
  • Current Rating: 8A
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 1.24mm
  • Wire Size: 22AWG
