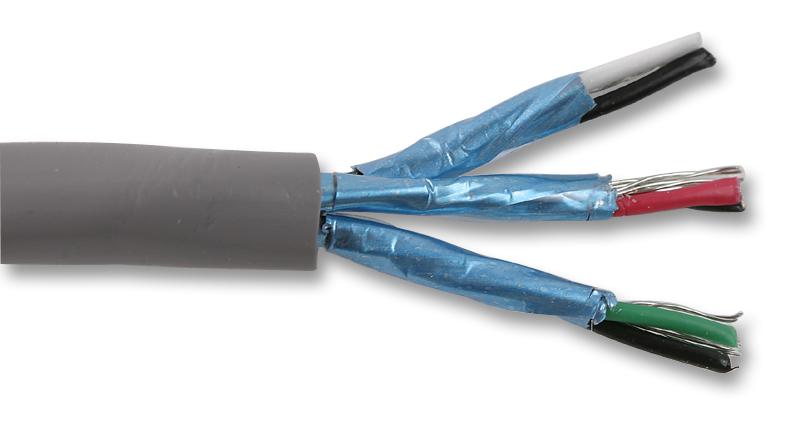

ALPHA WIRE - 6010C SL005 - Multipair Cable, Communication, Screened, 3 Pair, 22 AWG, 0.34 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Pairs: 3 Pair
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.34mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.25mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 8mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Alpha Type Number: 6010C
- Approval Bodies: UL
- Attenuation: 4.2dB
- Cable Type: Foil Shield
- Cable UL Style Number: UL2493
- Conductor Make-up: 7 / 0.25mm
- Drain Wire Type: 22AWG tinned copper
- No. of Cores: 6Core
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Outer Diameter: 8mm
- Screen Type Primary: Aluminised Polyester Tape
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 1.14mm
- Voltage Rating VAC: 300V
- Wire Size: 22AWG
