59165-1-S-00-A Reed Sensor, Moulded Switch, NO LITTELFUSE

LITTELFUSEUGS :59165-1-S-00-A Code de commande:5541300

Prix:
Prix ​​promotionnel€2,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

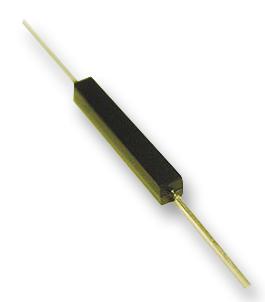

LITTELFUSE - 59165-1-S-00-A - Reed Switch, 59165 Series, Moulded, 7.5 mm, SPST-NO, 10 W, 200 Vdc, 0.5 A, 10 to 15 AT

  • Sensing Range Max: 7.5mm
  • Sensor Mounting: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Supply Current: 500mA
  • Product Range: 59165 Series
  • Body Length: 16mm
  • Breakover Voltage Min: 250VDC
  • Contact Configuration: 1NO
  • Current Load AC Max: 1.2A
  • External Depth: 2.41mm
  • External Length / Height: 40.39mm
  • External Width: 2.41mm
  • Height: 40.39mm
  • Operating Temperature Range: -40°C to +105°C
  • Output Power Max: 10W
  • Power Rating: 10W
  • Sensing Distance Max: 7.5mm
  • Sensing Range: 10mm to 15mm
  • Sensor Input: Magnetic
  • Supply Voltage DC Max: 200V
  • Switch Operation: Off-On
  • Switching Current AC Max: 0.5A
  • Switching Power Max: 10W
  • Switching Voltage: 200VDC
  • Switching Voltage DC: 200
