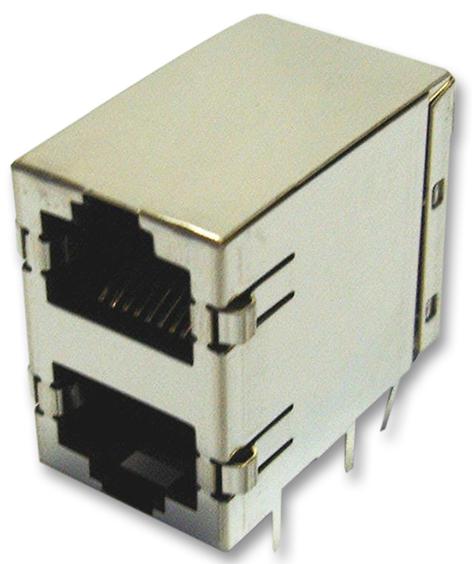

AMP - TE CONNECTIVITY - 5569381-1 - Modular Connector, Modular Jack, 2 x 1 (Stacked), 8P8C, Cat5, Through Hole Mount
- Modular Connector Type: Modular Jack
- Port Configuration: 2 x 1, Stacked
- No. of Positions / Loaded Contacts (per Port): 8P8C
- LAN Category: Cat5
- IP Rating: -
- Connector Mounting: Through Hole Mount
- Connector Orientation: Right Angle
- Shielding: Shielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: SKT Series
- SVHC: No SVHC (27-Jun-2018)
- Body Plating: Tin
- Colour: Black
- Connector Type: RJ45
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 1.5A
- External Depth: 28.45mm
- External Length / Height: 25.27mm
- External Width: 17.27mm
- Flammability Rating: UL 94V-0
- Gender: Jack
- Material: Polyester
- No. of Contacts: 16Contacts
- No. of Mating Cycles: 750
- No. of Ports: 2Ports
- No. of Positions: 8Ways
- Voltage Rating VAC: 150V
