5473C SL005 CABLE, 24AWG, SCRN, 3PAIR, 30.5M ALPHA WIRE

ALPHA WIREUGS :5473C SL005 Code de commande:1235610

Prix:
Prix ​​promotionnel€77,39

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (82 unité)

Documents et téléchargements

description

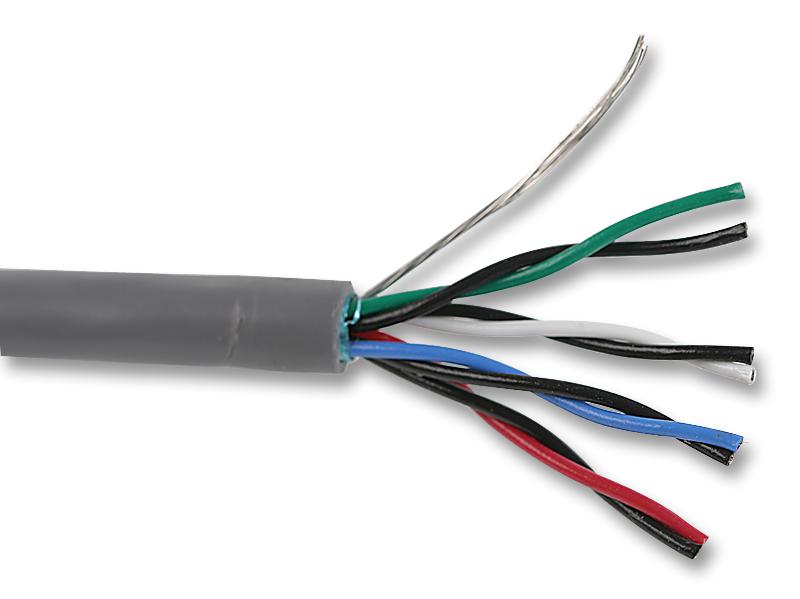

ALPHA WIRE - 5473C SL005 - Multipair Cable, Communication & Control, Screened, 3 Pair, 24 AWG, 0.2 mm², 100 ft, 30.5 m

  • Cable Shielding: Screened
  • No. of Pairs: 3 Pair
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.2mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 7 x 32AWG
  • Voltage Rating: 300V
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • External Diameter: 5.8mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Alpha Type Number: 5473C
  • Approval Bodies: UL
  • Belden Type Number: 9503 EQUIVALENT
  • Cable Type: Foil Shield
  • Cable UL Style Number: UL2464
  • Conductor Make-up: 7 / 0.2mm
  • Drain Wire Type: 24AWG stranded tinned copper
  • No. of Cores: 6Core
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 5.8mm
  • Screen Type Primary: Aluminum/polyester tape
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Secondary Insulation Thickness: 0.81mm
  • Voltage Rating VAC: 300V
  • Wire Size: 24AWG

Frais de port prévus
