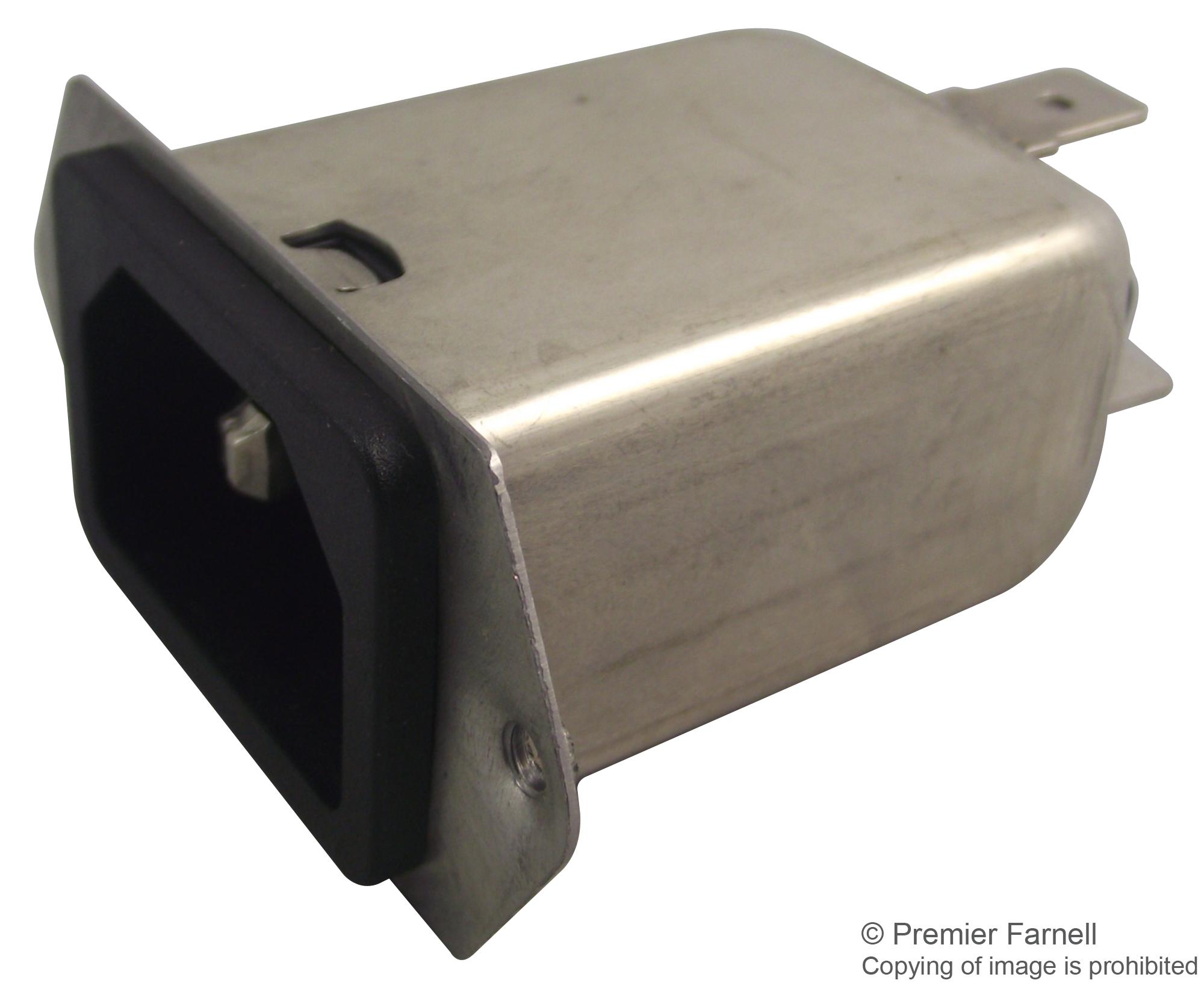

SCHURTER - 5120.1000.0 - Filtered IEC Power Entry Module, IEC C14, General Purpose, 1 A, 250 VAC
- Capacitance: 0.1µF
- Voltage Rating: 250V
- Filter Type: IEC, Mains
- Current Rating: 1A
- Filter Terminals: Quick Connect
- Inductance Min: 12mH
- Leakage Current Max: 373µA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CCC
- Approval Category: CSA C22.2 no.42, UL 498
- Behind Panel Depth: 51.5mm
- Capacitance X: 100nF
- Capacitance Y: 2.2nF
- Case Material: Thermoplastic
- Colour: Black
- External Depth: 54.5mm
- External Length / Height: 24.6mm
- External Width: 48.6mm
- Fixing Centres: 40mm
- Fixing Hole Diameter: 3.6mm
- Flammability Rating: UL94V-0
- Inductance: 12mH
- Leakage Current: 373µA
- No. of Contacts: 3Contacts
- No. of Phases: Single Phase
- Operating Temperature Max: +85°C
- Operating Temperature Min: -25°C
- Panel Cutout Size: 30.5 x 22.5 mm mm
- Panel Thickness: 2.5mm
- Termination Method: Tab
- Thread Size: M3
- Voltage Rating VAC: 250V
