508-521-22 LED Indicator, 24Vdc, Yellow Marl

MARLUGS :508-521-22 Code de commande:9737499

Prix:
Prix ​​promotionnel€37,44

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11 unité)

Documents et téléchargements

description

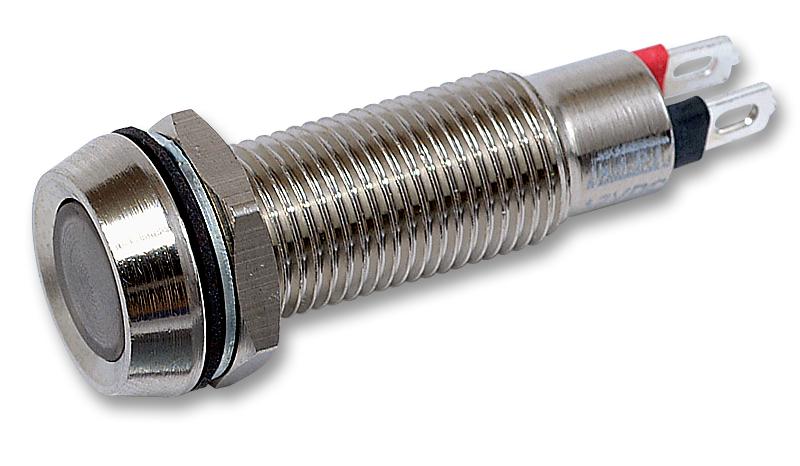

MARL - 508-521-22 - LED Panel Mount Indicator, Weatherproof, Yellow, 24 VDC, 8.1 mm, 20 mA, 16 cd, IP67

  • LED Colour: Yellow
  • Operating Voltage: 24VDC
  • Mounting Hole Dia: 8.1mm
  • Forward Current If: 20mA
  • Luminous Intensity: 16cd
  • IP / NEMA Rating: IP67
  • Product Range: 508 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Bezel Diameter: 11.5mm
  • Body Plating: Nickel
  • Bulb Size: 7mm
  • Current If Luminous Intensity: 20mA
  • External Diameter: 11.5mm
  • External Length / Height: 33mm
  • Fixing Hole Diameter: 8.1mm
  • Forward Current If Max: 20mA
  • Forward Voltage: 24V
  • Forward Voltage VF Max: 24V
  • LED / Lamp Size: 7mm
  • Length Behind Bezel: 29.3mm
  • Luminous Intensity Typ: 6200mcd
  • Material: Brass
  • Operating Current DC: 20mA
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Operating Temperature Range: -20°C to +60°C
  • Operating life Time: 90000h
  • Peak Wavelength: 595nm
  • Supply Voltage V DC: 24V
  • Voltage Rating V DC: 24V
  • Voltage Vf Typ: 24VDC
  • Wavelength Typ: 595nm
