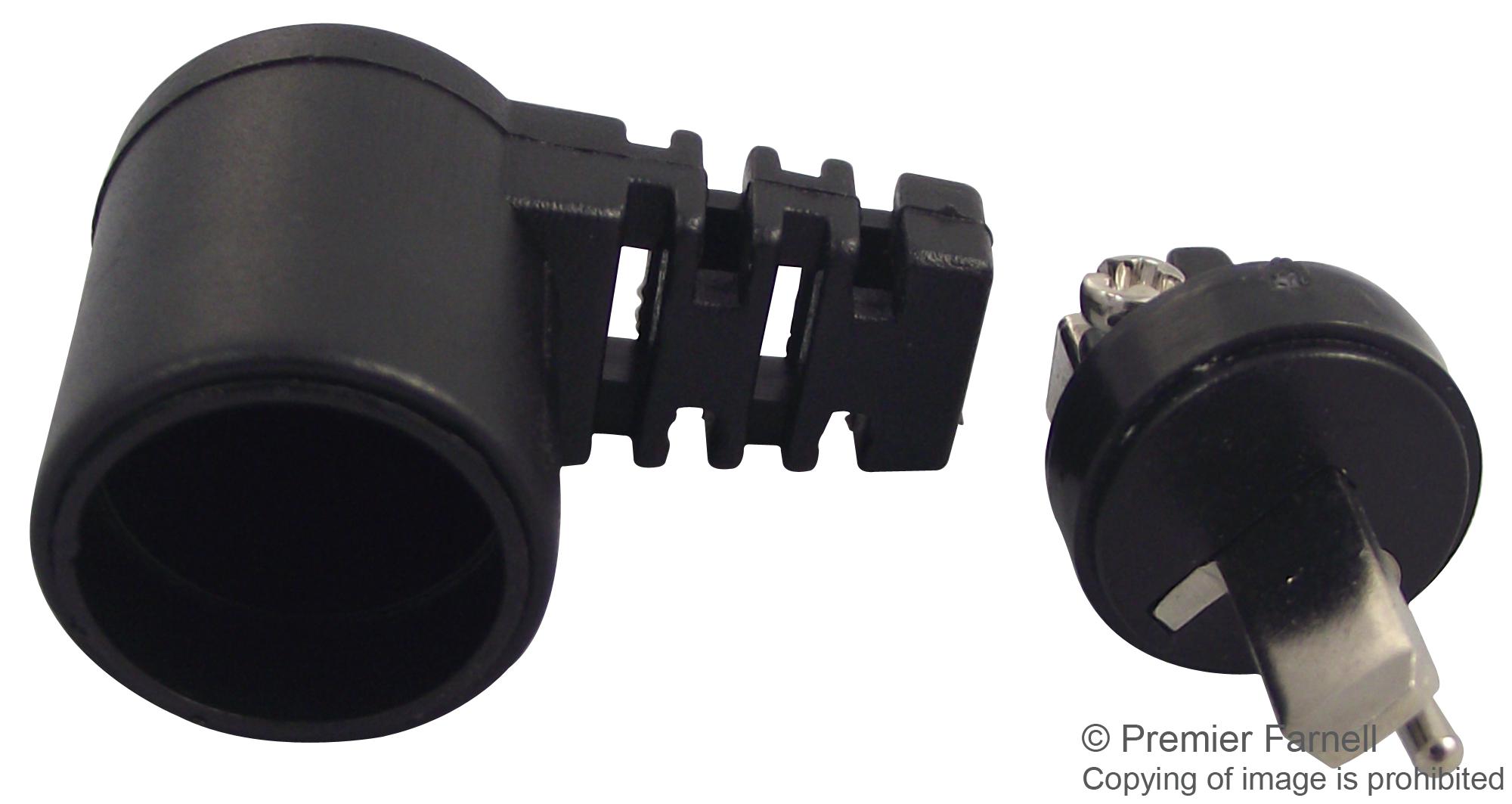

SCHURTER - 4850.1251 - DIN Audio / Video Connector, 2 Contacts, Plug, Cable Mount, Screw
- No. of Contacts: 2Contacts
- Gender: Plug
- Connector Mounting: Cable Mount
- Contact Termination: Screw
- Contact Plating: -
- Connector Body Material: -
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 6.3mm
- Colour: Black
- Connector Colour: Black
- Connector Type: DIN Audio
- Contact Resistance: 4mohm
- DC Current Max: 2A
- External Length / Height: 28.5mm
- External Width: 15mm
- Operating Temperature Max: 90°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 34V
