4116R-1-333LF Resistor Network, 33KR Bourns

BOURNSUGS :4116R-1-333LF Code de commande:1612525

Prix:
Prix ​​promotionnel€3,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (468 unité)

Documents et téléchargements

description

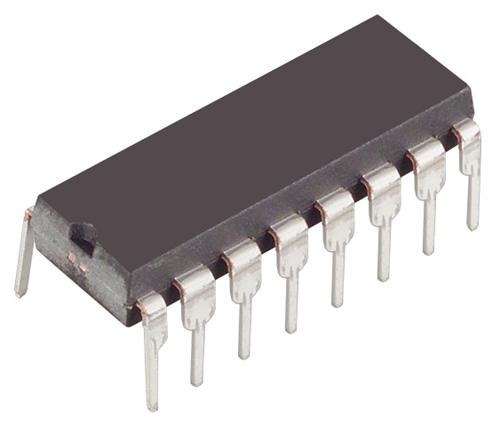

BOURNS - 4116R-1-333LF - Fixed Network Resistor, 33 kohm, Isolated, 8 Resistors, DIP, PC Pin, ± 2%

  • Resistance: 33kohm
  • Product Range: 4100R Series
  • No. of Elements: 8Elements
  • Network Circuit Type: Isolated
  • Resistor Case Style: DIP
  • No. of Pins: 16Pins
  • Voltage Rating: 100V
  • Power Rating per Element: 250mW
  • Resistance Tolerance: ± 2%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Power Rating: 2.25W
  • Resistance R1: 33kohm
  • Resistor Element Material: Thick Film
  • Resistor Mounting: Through Hole
