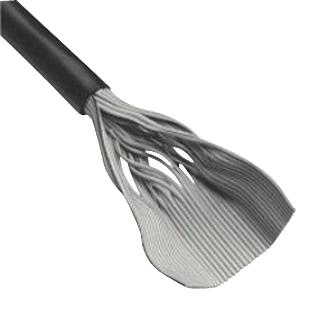

3M - 3759-26 - Ribbon Cable, Round Jacketed Flat, Unscreened, 26 Core, 28 AWG, 0.072 mm²
- Cable Shielding: Unscreened
- No. of Cores: 26Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.072mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Black
- Cable Width: 31.8mm
- No. of Max Strands x Strand Size: 7 x 36AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 50V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Round Jacketed Flat Ribbon Cable
- Product Range: 3759 Series
- Approval Bodies: UL
- Approval Category: Style 20267
- Cable Type: Unshielded Round to Flat
- Capacitance: 54.8pF/m
- Colour: Grey
- Conductor Make-up: 7/36AWG
- Current Rating: 1A
- Flammability Rating: CL2
- Impedance: 133ohm
- Inductance: 0.69µH/m
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
