3759-10 Ribbon Cable, 10WAY, 30.5m 3M

3MUGS :3759-10 Code de commande:8610916

Prix:
Prix ​​promotionnel€149,07

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (106 unité)

Documents et téléchargements

description

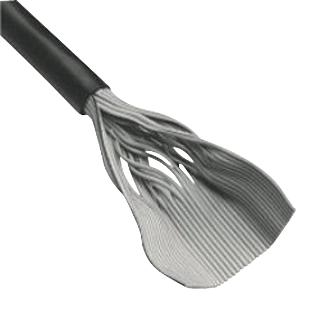

3M - 3759-10 - Ribbon Cable, Round Jacketed Flat, Unscreened, 10 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m

  • Cable Shielding: Unscreened
  • No. of Cores: 10Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.072mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Black
  • Cable Width: 11.4mm
  • No. of Max Strands x Strand Size: 7 x 36AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 50V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Round Jacketed Flat Ribbon Cable
  • Product Range: 3759 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: UL
  • Approval Category: Style 20267
  • Cable Type: Unshielded Round to Flat
  • Capacitance: 54.8pF/m
  • Colour: Grey
  • Conductor Make-up: 7/36AWG
  • Current Rating: 1A
  • Flammability Rating: CL2
  • Impedance: 133ohm
  • Inductance: 0.69µH/m
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
