3749-20 Ribbon Cable, 20CORE, 30AWG, Per M 3M

3MUGS :3749-20 Code de commande:1207757

Prix:
Prix ​​promotionnel€7,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1037 unité)

Documents et téléchargements

description

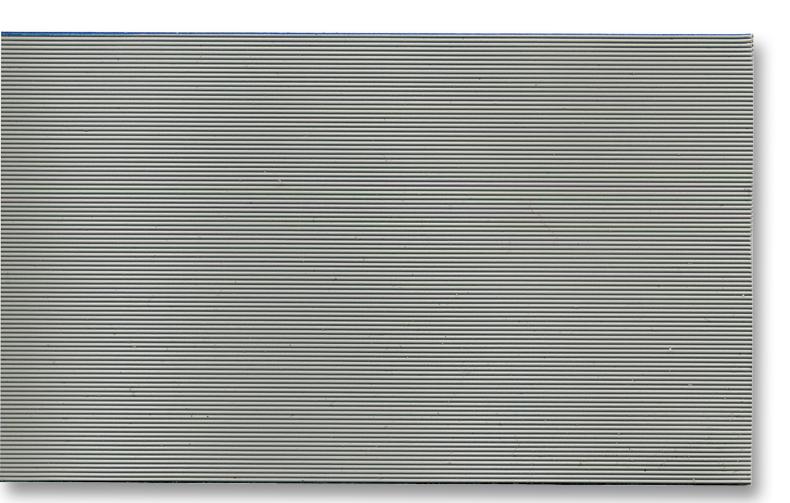

3M - 3749-20 - Ribbon Cable, Round Conductor, Per Metre, Unscreened, 20 Core, 30 AWG, 0.051 mm²

  • Cable Shielding: Unscreened
  • No. of Cores: 20Core
  • Wire Gauge: 30AWG
  • Conductor Area CSA: 0.051mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Grey
  • Cable Width: 12.7mm
  • No. of Max Strands x Strand Size: Solid
  • Pitch Spacing: 0.635mm
  • Voltage Rating: 50V
  • Conductor Material: Tinned Copper
  • Jacket Material: TPE
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3749 Series
  • Capacitance: 54.1pF/m
  • Colour: Grey
  • Current Rating: 1A
  • Flammability Rating: VW-1
  • Impedance: 90ohm
  • Inductance: 0.43µH/m
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
