3659-16 Ribbon Cable, RND/Flat, 16WAY, Per M 3M

3MUGS :3659-16 Code de commande:297574

Prix:
Prix ​​promotionnel€18,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (54 unité)

Documents et téléchargements

description

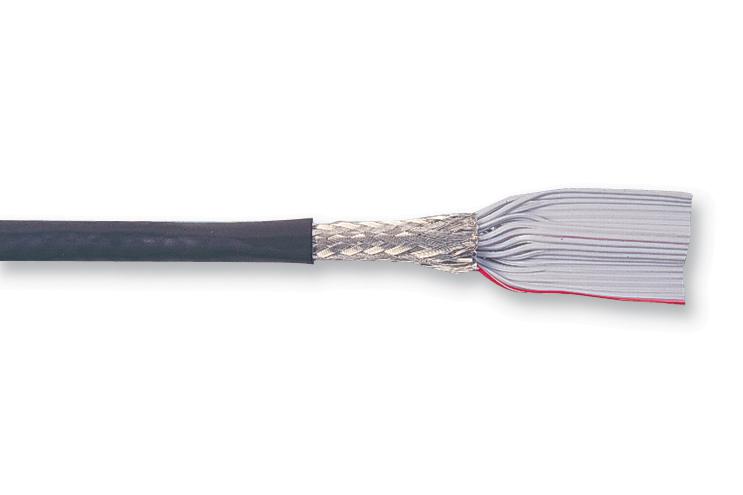

3M - 3659-16 - Ribbon Cable, Round Jacketed Flat, Per M, Screened, 16 Core, 28 AWG, 0.072 mm²

  • Cable Shielding: Screened
  • No. of Cores: 16Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.072mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Black
  • Cable Width: 19.1mm
  • No. of Max Strands x Strand Size: 7 x 36AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Round Jacketed Flat Ribbon Cable
  • Product Range: 3659 Series
  • Cable Type: Shielded Round to Flat
  • Cable UL Style Number: UL20267
  • Capacitance: 90.9pF/m
  • Colour: Grey
  • Conductor Make-up: 7/36AWG
  • Impedance: 62ohm
  • Inductance: 0.43µH
  • Insulation Resistance: 10000Mohm
  • Operating Temperature Max: 80°C
  • Screen Type Primary: Aluminised Polyester Tape
  • Screen Type, Secondary: Tinned copper braid
  • Secondary Insulation Colour: Black
  • Secondary Insulation Material: PVC
