3540S-1-101L Potentiometer, 100R Bourns

BOURNSUGS :3540S-1-101L Code de commande:1700931

Prix:
Prix ​​promotionnel€45,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (14 unité)

Documents et téléchargements

description

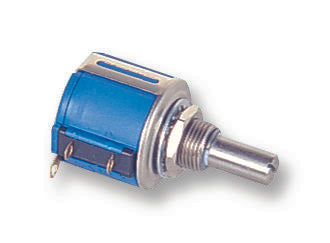

BOURNS - 3540S-1-101L - Rotary Potentiometer, Wirewound, 100 ohm, 10 Turns, Linear, 2 W, ± 5%, 3540S

  • Track Resistance: 100ohm
  • No. of Turns: 10Turns
  • Track Taper: Linear
  • Power Rating: 2W
  • Resistance Tolerance: ± 5%
  • Product Range: 3540S Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 20.62mm
  • SVHC: Lead (15-Jan-2019)
  • Body Diameter: 22.2mm
  • External Length / Height: 19mm
  • Full Power Rating Temperature: 40°C
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Proof Voltage: 1000V
  • Resistance: 100ohm
  • Resistor Element Material: Wirewound
  • Resolution %: 0.055%
  • Rotational Life Cycles: 1000000
  • Temperature Coefficient: ± 50ppm/°C
  • Terminal Resistance: 1ohm
  • Termination Type: Solder
  • Voltage Rating VAC: 447V
