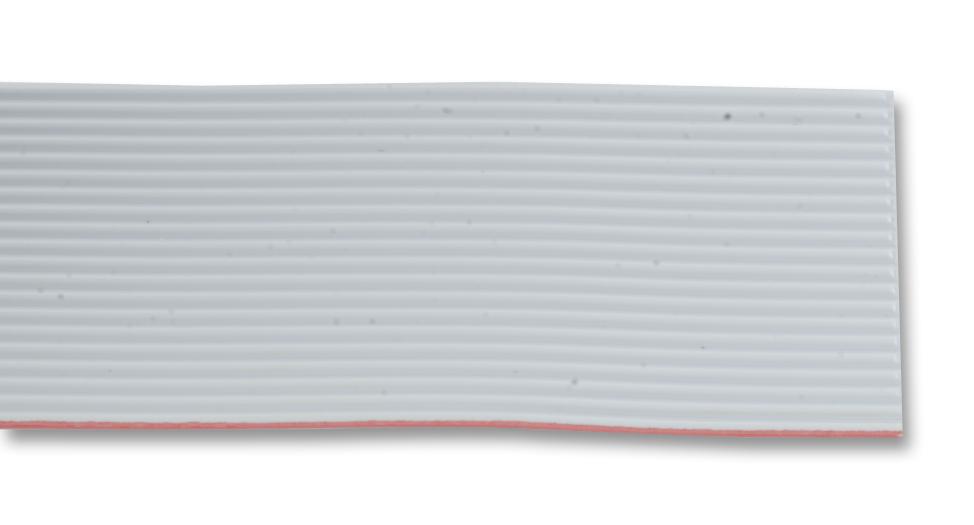

3539-40 Ribbon Cable, Med Flex, 40WAY, 30.5m 3M

3MUGS :3539-40 Code de commande:4140760

Prix:
Prix ​​promotionnel€411,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10 unité)

Documents et téléchargements

description

3M - 3539-40 - Ribbon Cable, Round Conductor Flat Medium Flex, Unscreened, 40 Core, 28 AWG, 0.093 mm², 100 ft

  • Cable Shielding: Unscreened
  • No. of Cores: 40Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.093mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Grey
  • Cable Width: 50.8mm
  • No. of Max Strands x Strand Size: 19 x 40AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3539 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Cable Type: Flat (Ribbon)
  • Cable UL Style Number: UL2651
  • Capacitance: 43.8pF/m
  • Colour: Grey
  • Conductor Make-up: 19/0.079mm
  • Impedance: 106ohm
  • Inductance: 0.49µH/m
  • Inductance Per Metre: 0.49µH/m
  • Insulation Resistance: 10000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -20°C
  • Velocity of Propagation (%): 72%
