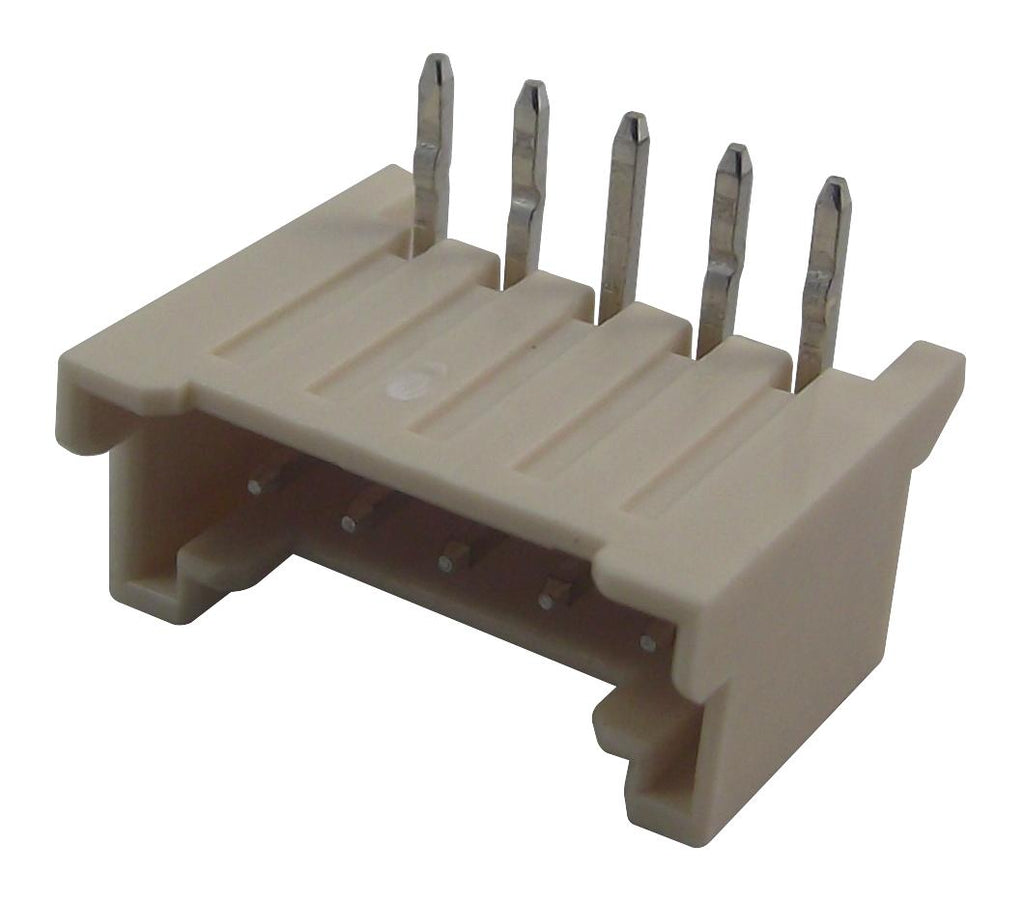

MOLEX - 35363-0560 . - Pin Header, Right Angle, Signal, 2 mm, 1 Rows, 5 Contacts, Through Hole Right Angle, Sherlock 35363
- Pitch Spacing: 2mm
- No. of Contacts: 5Contacts
- Gender: Header
- Product Range: Sherlock 35363 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance Max: 20mohm
- Current Max: 2A
- Current Rating: 2A
- External Depth: 8.55mm
- External Length / Height: 3.5mm
- External Width: 14.3mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- No. of Positions: 5Ways
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Voltage Rating V DC: 125V
- Voltage Rating VAC: 125V
- Withstand Voltage: 500VAC
