353620650 Connector, Header, 6Pos, 1ROW, 2mm Molex

MOLEXUGS :353620650 Code de commande:9289399

Prix:
Prix ​​promotionnel€0,79

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9193 unité)

Documents et téléchargements

description

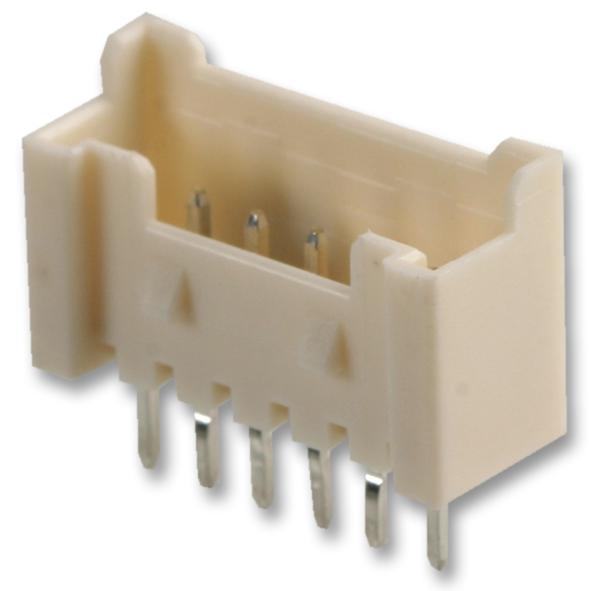

MOLEX - 353620650 - Pin Header, Straight, Signal, 2 mm, 1 Rows, 6 Contacts, Through Hole Straight, Sherlock 35362

  • Pitch Spacing: 2mm
  • No. of Contacts: 6Contacts
  • Gender: Header
  • Product Range: Sherlock 35362 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance Max: 20mohm
  • Current Max: 2A
  • Current Rating: 2A
  • External Depth: 6mm
  • External Length / Height: 2.2mm
  • External Width: 16.3mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Voltage Rating V DC: 125V
  • Voltage Rating VAC: 125V
  • Withstand Voltage: 500VAC
