description
- Cable Shielding: Unscreened
- No. of Cores: 26Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.093mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Black
- Cable Width: 33.02mm
- No. of Max Strands x Strand Size: 19 x 40AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 300V
- Conductor Material: Silver Plated Copper
- Jacket Material: PVC

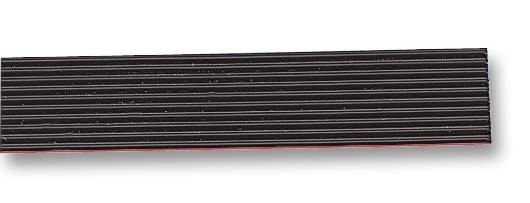

- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: 3319 Series
- Approval Bodies: UL
- Cable Type: Flat (Ribbon)
- Cable UL Style Number: UL2651
- Capacitance: 43.6pF/m
- Colour: Black
- Conductor Make-up: 19/40AWG
- Conductor Plating: Silver
- Flammability Rating: VW-1
- Impedance: 107ohm
- Inductance: 0.49µH/m
- Insulation Resistance: 10000Mohm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -20°C
