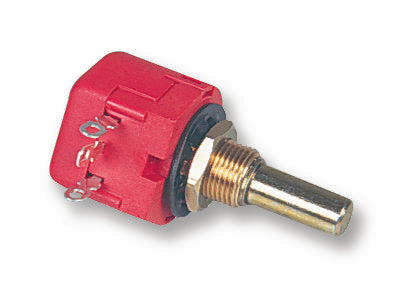

KYOCERA AVX - 3109604023 - Rotary Potentiometer, 100 ohm, 1 Turns, Linear, 1 W, ± 10%, ABW1
- Track Resistance: 100ohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Product Range: ABW1 Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Rotary
- Shaft Length: 25.4mm
- SVHC: No SVHC (17-Dec-2015)
- Body Diameter: 23mm
- Electrical Angular Rotation Tolerance +: 5°
- Electrical Angular Rotation Tolerance -: 5°
- External Length / Height: 17.45mm
- Full Power Rating Temperature: 40°C
- Insulation Resistance: 1000Mohm
- Isolation Voltage: 1000V
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Operating Temperature Max: 90°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +90°C
- Resistance: 100ohm
- Resistor Element Material: Wirewound
- Rotation Electrical Angle: 265°
- Rotation Mechanical Angle: 285°
- Temperature Coefficient: ± 400ppm/°C
- Terminal Resistance: 0.2ohm
- Termination Type: Solder
- Thread Size: 3/8" 32 T.P.I.
- Tolerance +: 10%
