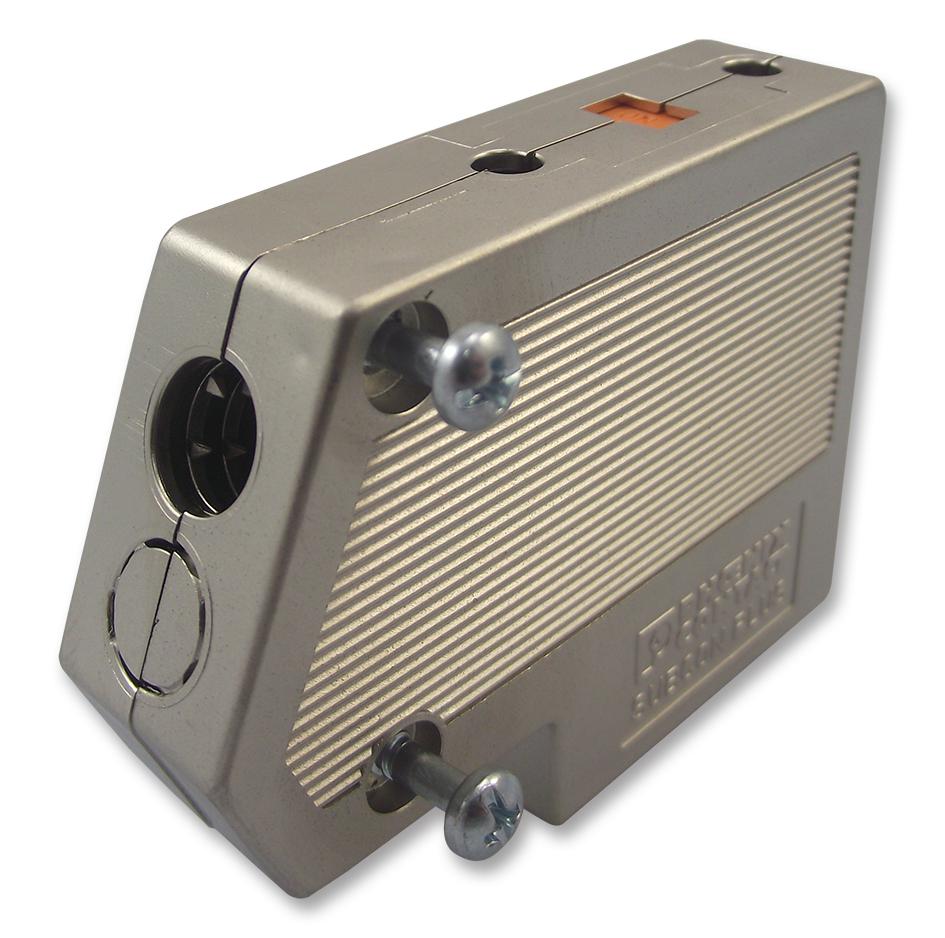

PHOENIX CONTACT - 2744348. - D Sub Connector, DB9, Standard, Plug, SUBCON, 9 Contacts, DE, Screw
- No. of Contacts: 9Contacts
- Gender: Plug
- Contact Termination Type: Screw
- D Sub Shell Size: DE
- Product Range: SUBCON Series
- Connector Body Material: Metal Body
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: cULus
- Cable Diameter Max: 8.4mm
- Cable Diameter Min: 7.6mm
- Conductor Area CSA: 0.12mm²
- Connector Mounting: Cable Mount
- Contact Termination: Screw
- Cross-section Area Max: 0.5mm²
- D Sub Connector Type: Standard
- Material: ABS
- No. of Mating Cycles: 200
- Termination Method: Cage Clamp
- Wire Size AWG Max: 20AWG
- Wire Size AWG Min: 28AWG
- Working Voltage: 60V
