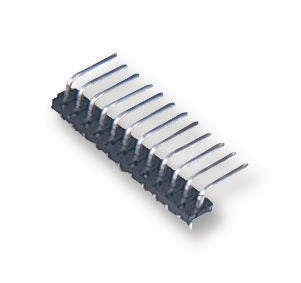

MOLEX - 26-48-1122 - Pin Header, Right Angle, Board-to-Board, Power, Wire-to-Board, 3.96 mm, 1 Rows, 12 Contacts
- Pitch Spacing: 3.96mm
- No. of Contacts: 12Contacts
- Gender: Header
- Product Range: KK 396 41662 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: CSA, UL
- Contact Resistance: 20mohm
- Current Rating: 7A
- De-mating Force: 1N
- Material: Black Nylon UL94V-0
- Mating Force: 6.7N
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 250V
- Working Voltage: 250V
