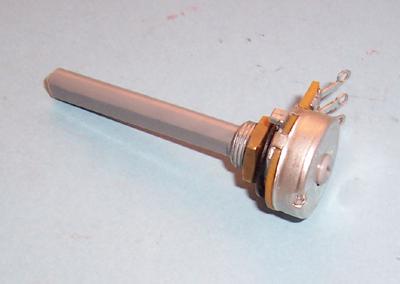

CITEC - TE CONNECTIVITY - 23ESB224MMF50NF - Rotary Potentiometer, Spindle Operated, 220 kohm, 1 Turns, Logarithmic, 200 mW, ± 20%, 23ESB
- Track Resistance: 220kohm
- No. of Turns: 1Turns
- Track Taper: Logarithmic
- Power Rating: 200mW
- Resistance Tolerance: ± 20%
- Product Range: 23ESB Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 50mm
- SVHC: No SVHC (15-Jan-2018)
- Body Diameter: 20.4mm
- External Length / Height: 10.7mm
- Full Power Rating Temperature: 40°C
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +70°C
- Panel Cutout Diameter: 9.6mm
- Proof Voltage: 1000V
- Resistance: 220kohm
- Resistor Element Material: Metal Foil
- Rotation Electrical Angle: 267°
- Rotation Mechanical Angle: 300°
- Terminal Resistance: 5ohm
- Termination Type: Solder
- Thread Size: 7.4 M9.5
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating: 500V
- Voltage Rating V DC: 500V
- Voltage Rating VAC: 500V
