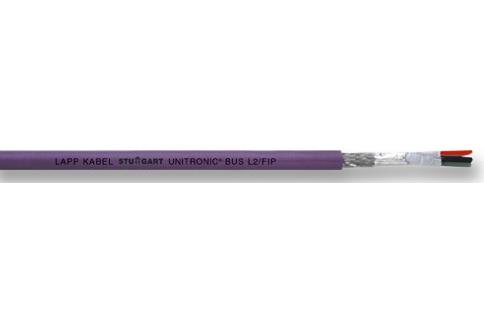

LAPP KABEL - 2170226 - Multipair Cable, Unitronic ProfiBus, Screened, 1 Pair, 24 AWG, 0.64 mm², 328 ft, 100 m
- Cable Shielding: Screened
- No. of Pairs: 1 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.64mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Purple
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 250V
- Jacket Material: LSZH
- Conductor Material: Copper
- External Diameter: 8mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Foil + Braided Shield
- Conductor Make-up: 7 / 0.2mm
- Nominal Capacitance: 28nF/km
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Outer Diameter: 8mm
- Secondary Insulation Colour: Violet
- Secondary Insulation Material: HM2 Halogen Free, Flame Retardent Compound
- Velocity of Propagation (%): 81%
- Wire Size: 24AWG
