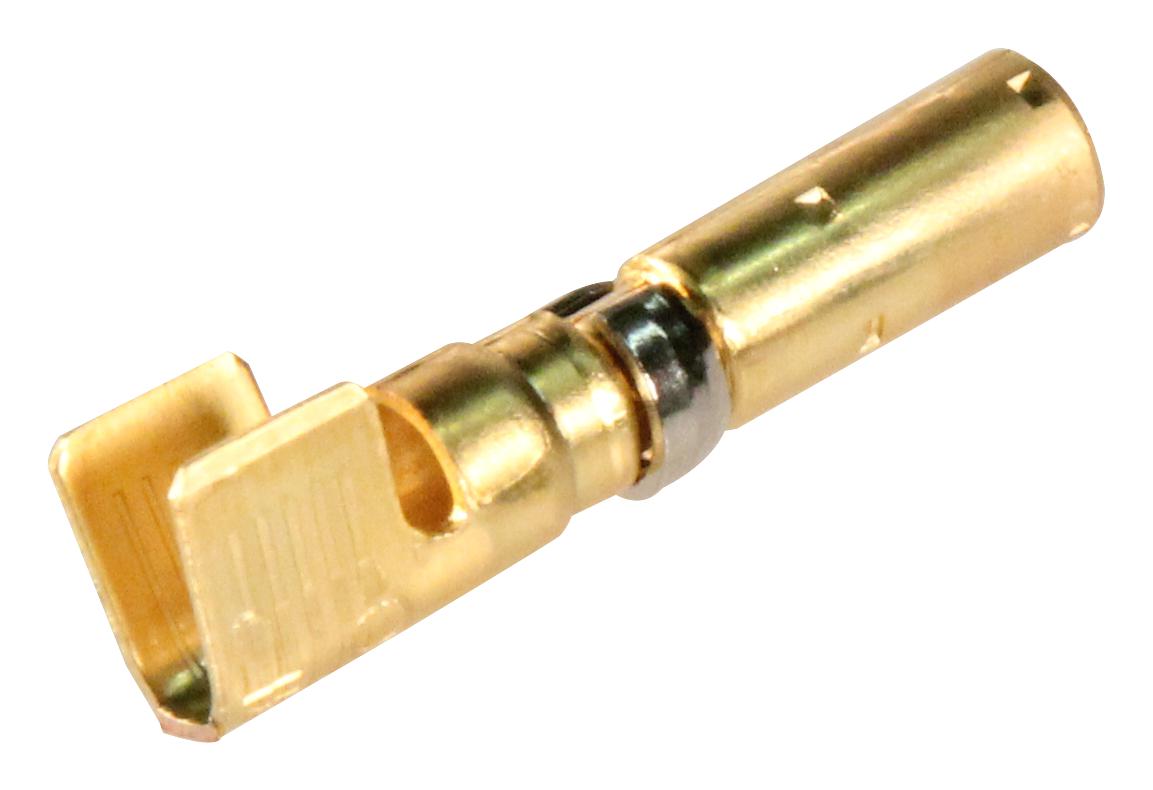

213843-4 Crimp Socket, 8-10AWG Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :213843-4 Code de commande:3195752

Prix:
Prix ​​promotionnel€16,72

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (390 unité)

Documents et téléchargements

description

AMP - TE CONNECTIVITY - 213843-4 - Contact, POWERBAND, Socket, Crimp, 8 AWG, Gold Plated Contacts

  • Product Range: POWERBAND Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 8AWG
  • Contact Plating: Gold Plated Contacts
  • For Use With: 0.125 POWERBAND Contact Series Connectors
  • Wire Size AWG Min: 10AWG
  • Contact Material: Copper
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: ASAE, NEMA, SAE, UL
  • Cable Diameter Max: 6.6mm
  • Cable Diameter Min: 2.59mm
  • Contact Size: 8
  • Contact Termination: Crimp
  • Current Rating: 45A
  • Gender: Receptacle
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -50°C
  • Wire Area Size Max: 8mm²
  • Wire Area Size Min: 5mm²
  • Wire Size: 8AWG
