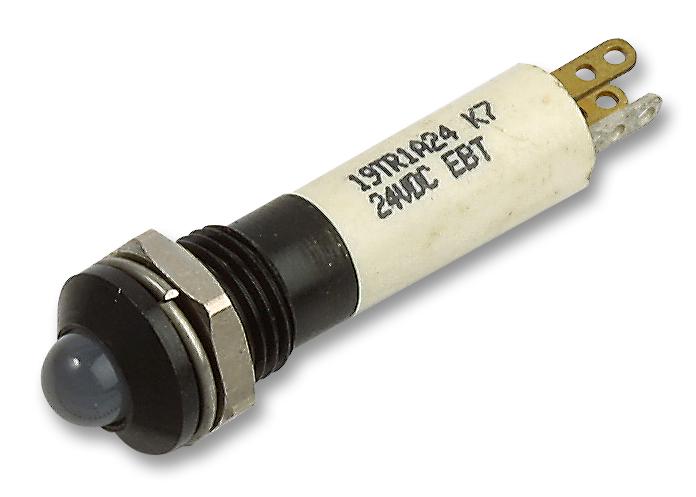

CML INNOVATIVE TECHNOLOGIES - 19TR1A24 - Multicolour Panel Indicators, Black Chrome Bezel, Red, Yellow, Green, 8 mm, R 20mA, Y 40mA, G 20mA
- LED Colour: Red, Yellow, Green
- Mounting Hole Dia: 8mm
- Forward Current / Colour: R 20mA, Y 40mA, G 20mA
- Operating Voltage / Colour: R 24V, Y 24V, G 24V
- Luminous Intensity / Colour: R 10mcd, Y 30mcd, G 20mcd
- IP / NEMA Rating: IP67
- Product Range: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE
- Bezel Diameter: 9.5mm
- Body Plating: Black Chrome
- Bulb Size: 5mm
- External Diameter: 9.5mm
- Fixing Hole Diameter: 8mm
- Forward Current If: 15mA
- Forward Current If Max: 15mA
- Forward Voltage / Colour: R 24V, Y 24V, G 24V
- Forward Voltage VF Max: 24V
- LED / Lamp Size: 5mm
- Length Behind Bezel: 35mm
- Lens Shape: Dome
- Luminous Intensity @ If Max: 20mcd
- Luminous Intensity @ If Min: 10mcd
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +70°C
- Operating Voltage Tolerance +: 10%
- Operating Voltage Tolerance -: 10%
- PIV Max: 5V
- Peak Forward Current: 15mA
- Thread Pitch: 0.75mm
- Thread Size: M8
- Voltage Rating V DC: 24V
