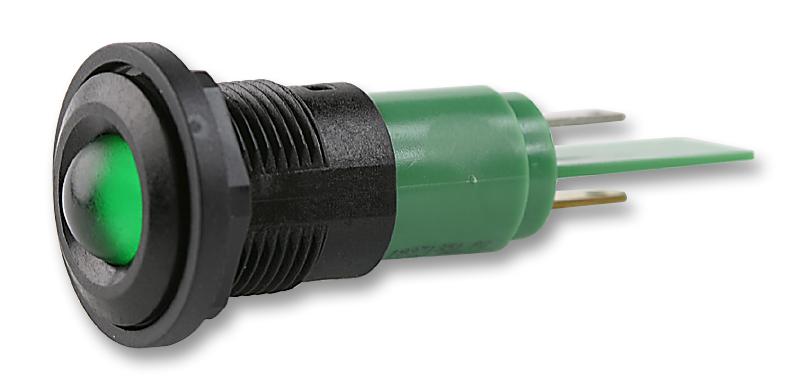

19371351 LED INDICATOR, 24VDC, GREEN CML INNOVATIVE TECHNOLOGIES

CML INNOVATIVE TECHNOLOGIESUGS :19371351 Code de commande:1139508

Prix:
Prix ​​promotionnel€16,66

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (98 unité)

Documents et téléchargements

description

CML INNOVATIVE TECHNOLOGIES - 19371351 - LED Panel Mount Indicator, Black Plastic Bezel, Green, 24 VDC, 16 mm, 15 mA, 85 mcd, IP67

  • LED Colour: Green
  • Operating Voltage: 24VDC
  • Mounting Hole Dia: 16mm
  • Forward Current If: 15mA
  • Luminous Intensity: 85mcd
  • IP / NEMA Rating: IP67
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Bulb Size: 10mm
  • External Diameter: 18.3mm
  • Forward Current If Max: 15mA
  • Forward Voltage: 24V
  • Forward Voltage VF Max: 24V
  • LED / Lamp Size: 10mm
  • Luminous Intensity Typ: 85mcd
  • Operating Current DC: 15mA
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +60°C
  • PIV Max: 5V
  • Peak Wavelength: 565nm
  • Supply Voltage V DC: 24V
  • Voltage Rating V DC: 24V
  • Voltage Vf Typ: 24VDC
  • Wavelength Typ: 565nm
