190402IP LED Indicator, 8mm, Satin, Yellow CML Innovative Technologies

CML INNOVATIVE TECHNOLOGIESUGS :190402IP Code de commande:1369152

Prix:
Prix ​​promotionnel€6,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (94 unité)

Documents et téléchargements

description

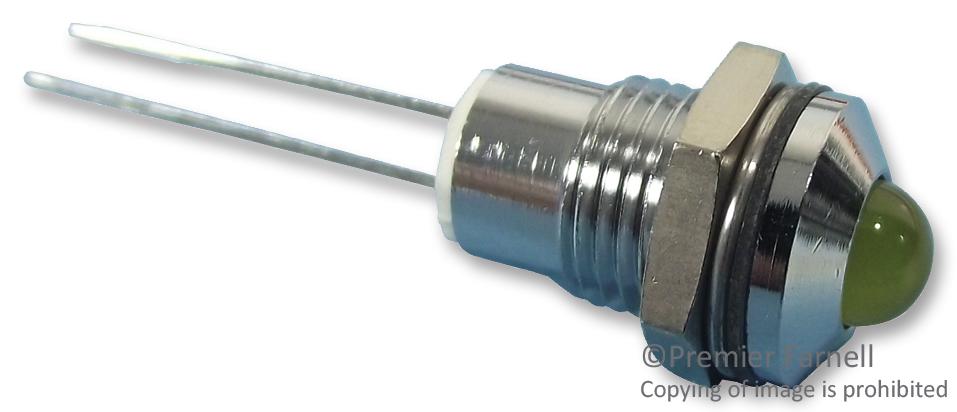

CML INNOVATIVE TECHNOLOGIES - 190402IP - LED Panel Mount Indicator, Satin Chrome Bezel, Yellow, 2.1 VDC, 8 mm, 20 mA, 32 mcd, IP67

  • LED Colour: Yellow
  • Operating Voltage: 2.1VDC
  • Mounting Hole Dia: 8mm
  • Forward Current If: 20mA
  • Luminous Intensity: 32mcd
  • IP / NEMA Rating: IP67
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Bezel Diameter: 9.5mm
  • External Diameter: 9.5mm
  • Forward Voltage: 2.1V
  • LED / Lamp Size: 8mm
  • Lead Diameter: 0.8mm
  • Lead Length: 9.5mm
  • Length Behind Bezel: 20.5mm
  • Material: Satin Chrome
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Operating Temperature Range: -20°C to +60°C
  • Storage Temperature Max: 80°C
  • Storage Temperature Min: -25°C
  • Thread Size: M8
