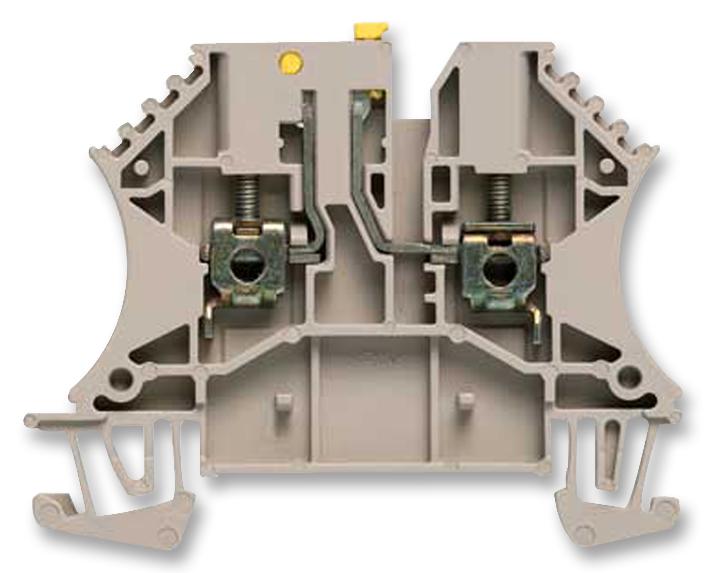

WEIDMULLER - 1855620000 - DIN Rail Mount Terminal Block, 2 Ways, 30 AWG, 12 AWG, 4 mm², Screw, 24 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 30AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: 4mm²
- Wire Connection Method: Screw
- Rated Current: 24A
- Rated Voltage: 500V
- No. of Levels: 1
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Colour: Beige
- Connector Mounting: Panel Mount
- Connector Type: Terminal Block, DIN Rail
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- External Length / Height: 60mm
- External Width: 5.1mm
- Flammability Rating: UL94V-0
- Operating Temperature Max: 120°C
- Operating Temperature Min: -50°C
- Voltage Rating VAC: 500V
