1814655-7 Socket Ic, Sil, 10WAY Te Connectivity

TE CONNECTIVITYUGS :1814655-7 Code de commande:1218868

Prix:
Prix ​​promotionnel€3,13

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2684 unité)

Documents et téléchargements

description

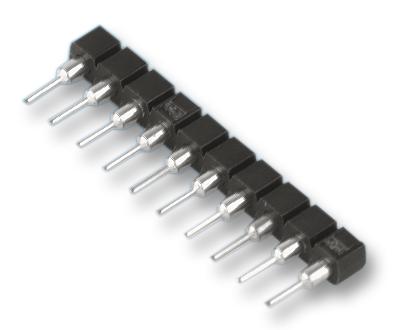

TE CONNECTIVITY - 1814655-7 - IC & Component Socket, 10 Contacts, SIP Socket, 2.54 mm, Beryllium Copper

  • No. of Contacts: 10Contacts
  • Connector Type: SIP Socket
  • Pitch Spacing: 2.54mm
  • Product Range: -
  • Row Pitch: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • SVHC: No SVHC (15-Jan-2018)
  • Connector Mounting Orientation: PC Board
  • Contact Clip Material: Beryllium Copper
  • Contact Clip Plating: 10u" Gold
  • Contact Resistance: 10mohm
  • Contact Shell Plating: Tin / Lead
  • Contact Termination: Through Hole Vertical
  • Contact Termination Type: Through Hole
  • De-mating Force: 63gf
  • External Depth: 2.54mm
  • External Length / Height: 2.54mm
  • External Width: 12.5mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5000Mohm
  • Lead Spacing: 2.54mm
  • Mating Force: 179gf
  • Moulding Material: Thermoplastic polyester
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • PCB Hole Diameter: 0.89mm
  • Pin Format: SIP
  • Shell Contact Material: Brass
