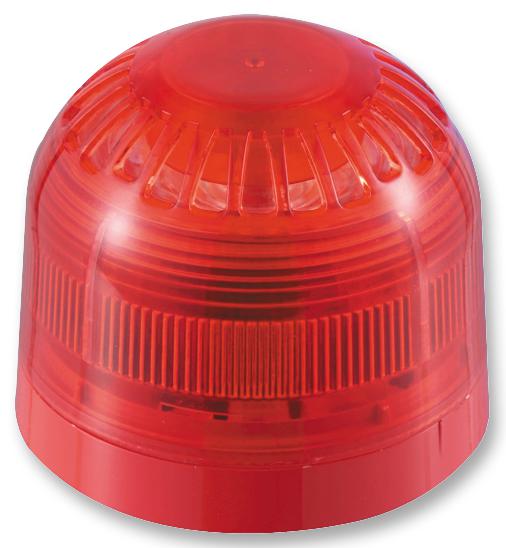

KLAXON - 18-980500 - Beacon / Sounder, Shallow Base, Red, Steady, 120mm Dia., Multiple Tones, 107dB, 60VDC, IP65
- Supply Voltage V AC: -
- Supply Voltage V DC: 60VDC
- Module Lens Colour: Red
- Visual Signal Type: Steady
- Tones: Multiple Tones
- IP / NEMA Rating: IP65
- Sound Level SPL: 107dB
- Lens Diameter: 120mm
- External Height: 81.32mm
- Connection Type: -
- Operating Temperature Min: -25°C
- Operating Temperature Max: 70°C
- Product Range: -
- Current Consumption: 50mA
- External Diameter: 97.5mm
- External Length / Height: 81.32mm
- Frequency: 2850Hz
- Frequency Response Max: 2.85kHz
- Frequency Response Min: 400Hz
- Input Current: 50mA
- Lens Colour: Red
- Material: High Impact Polycarbonate
- Operating Temperature Range: -25°C to +70°C
- Sound Level Distance: 1m
- Sound Level Max: 107dB
- Sound Level Min: 96dB
- Supply Voltage: 60VDC
- Supply Voltage DC Max: 60V
- Supply Voltage DC Min: 17V
- Supply Voltage Max: 60VDC
- Supply Voltage Min: 60VDC
- Supply Volts: 17V DC to 60V DC
- Transducer Function: Sounder
- Weight: 215g
