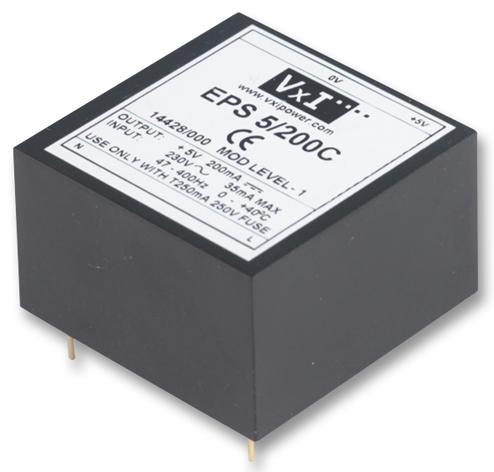

14428-000 PSU, ENCAPSULATED, 5V, 0.2A EPS 5/200C VXI POWER

VXI POWERUGS :14428-000 Code de commande:1186388

Prix:
Prix ​​promotionnel€65,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

VXI POWER - 14428-000 - Linear Power Supply, ITE, 1 Outputs, 1 W, 5 V, 200 mA

  • No. of Outputs: 1Outputs
  • Output Power Max: 1W
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 200mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Input Voltage VAC: 207V AC to 253V AC
  • Product Range: -
  • Power Supply Output Type: Fixed
  • Output Current - Output 3: -
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CE
  • External Depth: 50mm
  • External Length / Height: 30mm
  • External Width: 50mm
  • Height: 30mm
  • Input Voltage AC Max: 253V
  • Input Voltage AC Min: 207V
  • Length: 50mm
  • Operating Temperature Max: 40°C
  • Operating Temperature Min: 0°C
  • Output Ripple Voltage pk-pk: 10mV
  • Power Supply Type: Linear
  • Supply Frequency Max: 63Hz
  • Supply Frequency Min: 47Hz
  • Supply Voltage: 240V
  • Supply Voltage Max: 250V
  • Supply Voltage Min: 210V
  • Supply Voltage Typ: 230V AC
  • Width: 50mm
