1214C SL005 Cable, Shielded, 24AWG, 4CORE, 30.5m Alpha Wire

ALPHA WIREUGS :1214C SL005 Code de commande:1619571

Prix:
Prix ​​promotionnel€168,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6 unité)

Documents et téléchargements

description

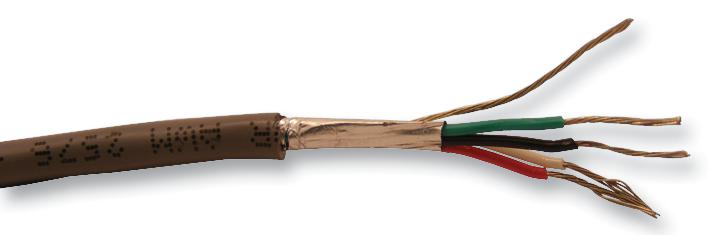

ALPHA WIRE - 1214C SL005 - Multicore Cable, Screened, 4 Core, 24 AWG, 0.23 mm², 100 ft, 30.5 m

  • Cable Shielding: Screened
  • No. of Cores: 4Core
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.23mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 7 x 32AWG
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • External Diameter: 4.7mm
  • Voltage Rating: 300V
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Type: Foil Shield
  • Conductor Make-up: 7 / 32
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 4.7mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Secondary Insulation Thickness: 0.81mm
  • Test Voltage: 300V
  • Wire Size: 24AWG
