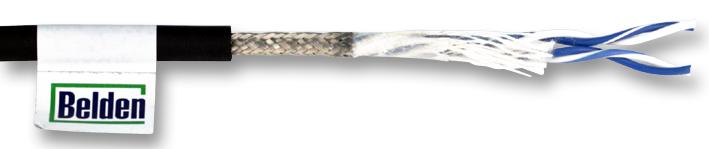

BELDEN - 1192A B59100 - Multicore Cable, Star Quad, Screened, 4 Core, 24 AWG, 0.201 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Cores: 4Core
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.201mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Black
- No. of Max Strands x Strand Size: 42 x 0.079mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 6.22mm
- Voltage Rating: 100V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Bend Radius Min: 2.45"
- Cable Type: Shielded
- Conductor Make-up: 42 / 40
- Core - Core Capacitance: 39.2pF/ft
- Core-Screen Capacitance: 57.4pF/ft
- Current Rating: 2.9A
- Impedance: 40ohm
- Operating Temperature Max: 75°C
- Operating Temperature Min: -30°C
- Outer Diameter: 6.22mm
- Secondary Insulation Colour: Black
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 66%
- Voltage Rating VAC: 100V
- Wire Size: 24AWG
