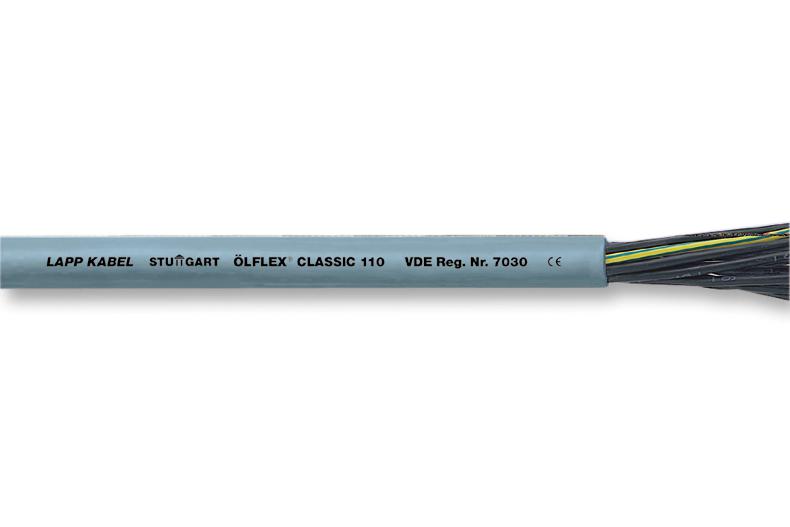

LAPP KABEL - 1119303 - Multicore Cable, Ölflex® Classic 10 YY, Per Metre, Unscreened, 3 Core, 16 AWG, 1.5 mm²

  • Cable Shielding: Unscreened
  • No. of Cores: 3Core
  • Wire Gauge: 16AWG
  • Conductor Area CSA: 1.5mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 30 x 0.25mm
  • Conductor Material: Copper
  • Jacket Material: PVC
  • External Diameter: 6.7mm
  • Voltage Rating: 500V
  • Product Range: YY Series
  • SVHC: No SVHC (15-Jan-2019)
  • Bend Radius Min: 15mm
  • Cable Type: Unshielded
  • Conductor Make-up: 30 / 0.25mm
  • Core-Earth / Core-Core Voltage Rating: 300/500 V
  • Flexing Temperature Max: 70°C
  • Flexing Temperature Min: -5°C
  • Installed Bend Radius Min: 4
  • Insulation Resistance: 20Gohm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -5°C
  • Outer Diameter: 6.7mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Test Voltage: 4000V
  • Voltage Rating VAC: 500V
