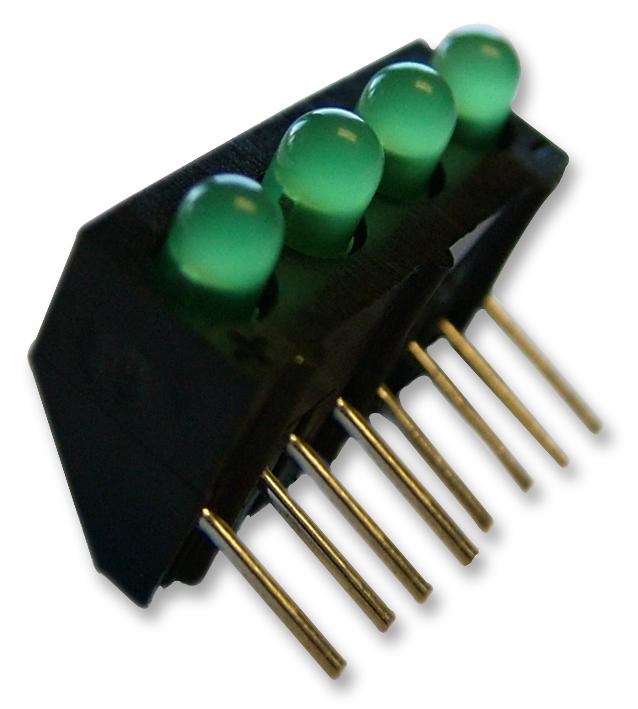

MARL - 107-314-01 - Circuit Board Indicator, Green, 4 LEDs, Through Hole, T-1 (3mm), 2 mA, 20 mcd
- LED Colour: Green
- No. of LEDs: 4LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current If: 2mA
- Luminous Intensity: 20mcd
- Forward Voltage: 2.2V
- Viewing Angle: -
- Height: 6.7mm
- Width: 17.6mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Display Size: 17.5mm x 6.7mm
- External Depth: 9.3mm
- External Length / Height: 6.7mm
- External Width: 17.6mm
- Forward Current If Max: 2mA
- Forward Voltage VF Max: 2.2V
- LED / Lamp Size: 3mm / T-1
- LED Configuration: Array
- LED Type: Standard
- Lead Cross-section Depth: 0.5mm
- Lead Cross-section Width: 0.5mm
- Lead Length: 5mm
- Lead Spacing: 2.54mm
- Lens Shape: Round
- Luminous Intensity Typ: 2mcd
- No. of Pins: 8Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Peak Forward Current: 2mA
- Peak Wavelength: 563nm
- Voltage Vf Typ: 2.2VDC
- Wavelength Typ: 565nm
